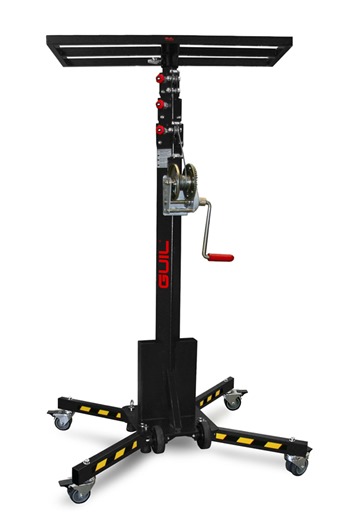

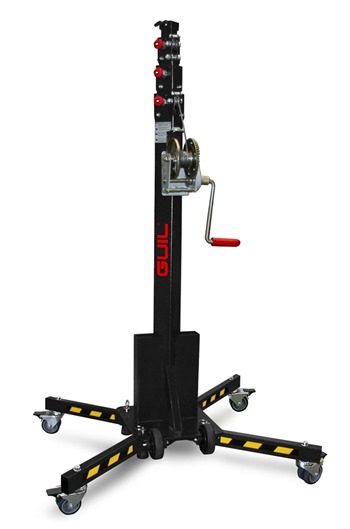

ECL-630/R 125kg Lifting Tower

The ECL-630/R is a compact telescopic Lifting Tower designed to raise loads of up to 125kg to a maximum height of 4.56mtrs.

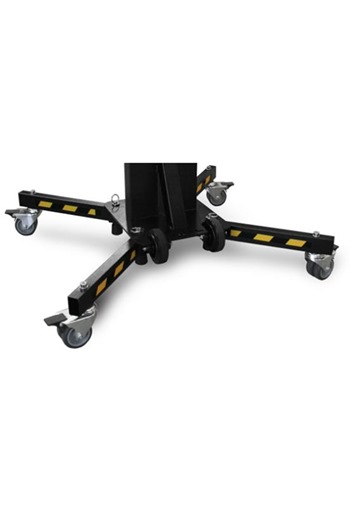

It's user-friendly and compact base of 38 x 30cm with swivel castors make the ELC-630/R Lifting Tower and ideal complement for any kind of lifting task that has to be done in a limited working area for both outdoor and indoor use.

The telescopic mast consists of 4 telescopic sections made of steel finished in a textured black powder coating (Epoxy) for outdoor use. These sturdy sections are raised by means of a 4mm non-rotating steel wire rope with independent galvanised steel core specially designed for lifting heavy loads.

This Lift Tower is fitted with two safety systems which guarantee maximum reliability and resistance:-

• Hand winch with an automatic braking system.  Its auto-block system ensures the load remains in position whenever the handle is released

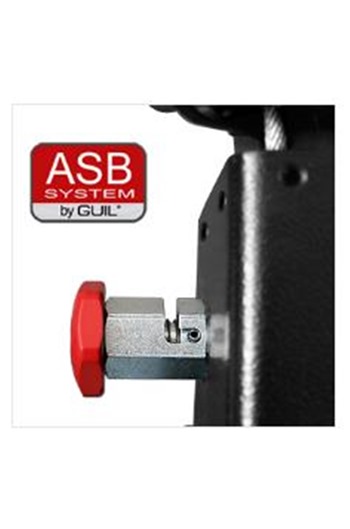

• ABS System (Automatic Safety Blocking System) Zip/Trigger safety system with holes by means of which in the extreme case of cable breakage, the safety trigger would automatically slide into one of these holes, blocking the load and stopping it from falling

The ELC-630/R lift tower is perfect for applications such as:-

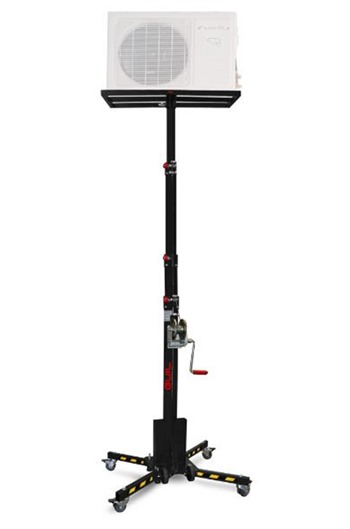

• Air conditioning Installations
• Heating Installations
• Ceiling Installations
• Electric appliance Installations
• Material Handling
• Entertainment Industry
• Carpentry
• Maintenance work
• Airports - Hotels
• Warehouses

Key features:-

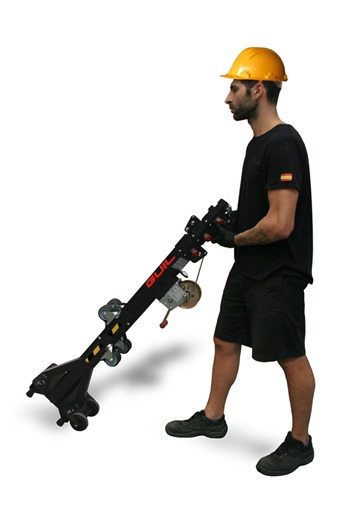

• Compact design - easy manoeuvrability and loading into vehicles
• Fast and easy set-up with no tools required
• Brake winch that blocks the load in place when the handle is released
• With its reduced size and weight, it is easily used by one person
• For industrial, commercial or domestic installations, for both indoor and outdoor use

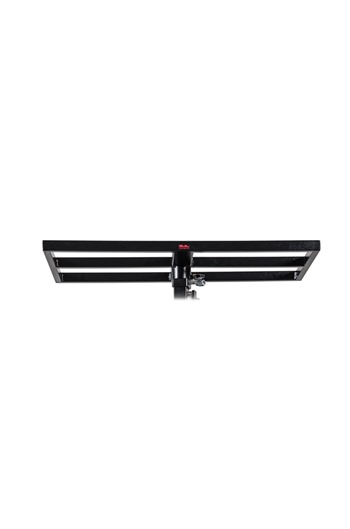

• Supplied with 800 x 400 x 30mm rectangular loading platform
• Maximum height: 4.56mtrs
• Maximum load: 125kgs

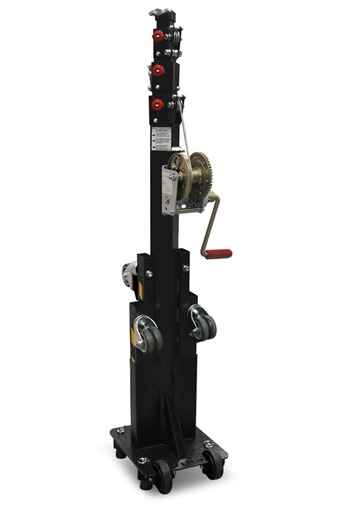

• Height stowed: 1.45mtr
• Net weight: 37kg
