MOD12 Spreader Beam 12tonne 1mtr to 4mtr

Product Code: MOD12-RS

0 Review(s)

Modulift

Price Breaks:
See all quantity price breaks Click here for Net Weight

 Exclusive Web Only Price!

Was: £1,236.01 £1,030.01 (ex VAT)
Now: £1,030.01 Each inc VAT
(£858.34 ex VAT)
Phone
Order Price
£1,050.61
Each inc VAT
(£875.51 ex VAT)
Options:
Qty:
Quantity:
1+
£858.34 ex Vat

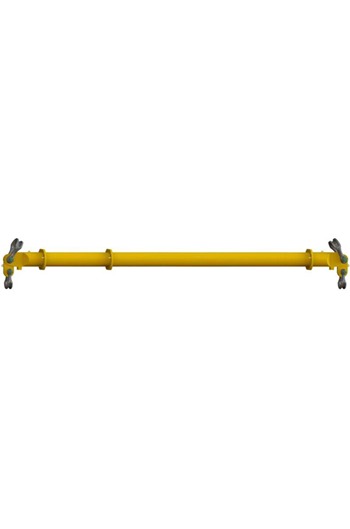

MOD12 12tonne Spreader Beam

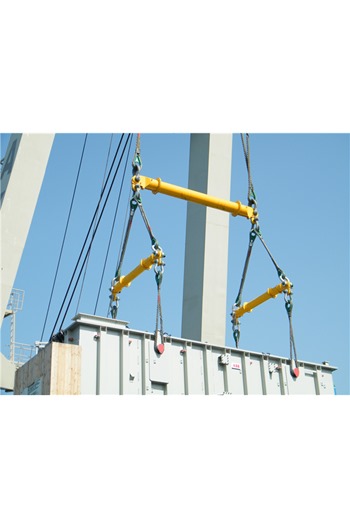

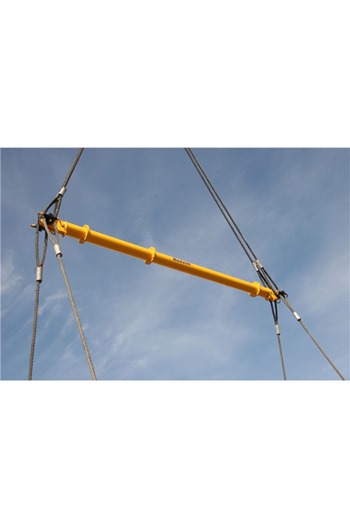

Modular Spreader Beams provide the ideal solution for most lifting requirements - versatile and cost-effective

The modular configuration and interchangeable components enable these Spreader Beams to be reused over many lists

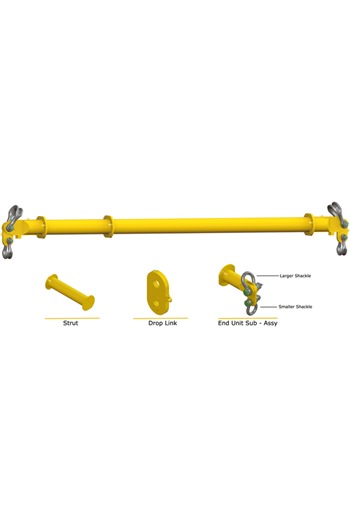

The MOD12 Spreader Beam consists of 1x pair of 250mm End Units and Drop Links, 2x 6.5ton Alloy Bow Shackles and 2x 8.5ton Alloy Bow Shackles, with intermediate struts that can be bolted into the assembly to achieve different spans (MAX SPAN OF BEAM= 4MTRS), please see below for configurations (different configurations and extra struts are available, please contact our sales team for more information):-

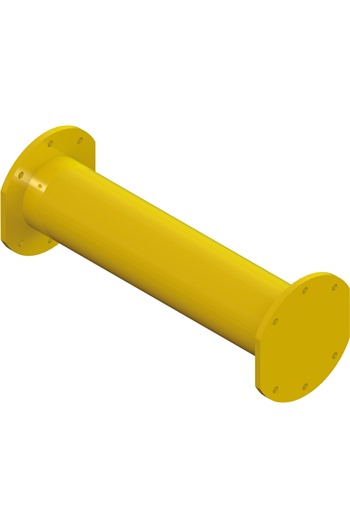

MOD12-1M-RS - 2x 250mm End Units, 1x 500mm strut

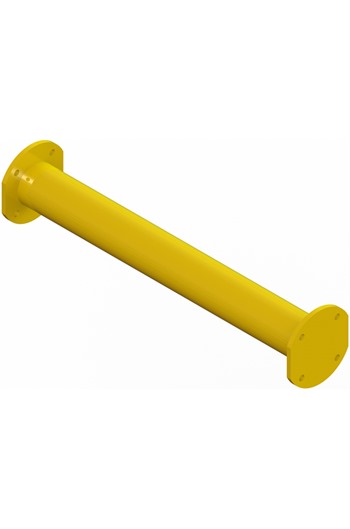

MOD12-1.5M-RS - 2x 250mm End Units, 1x 1000mm strut

MOD12-2M-RS - 2x 250mm End Units, 1x 1500mm strut

MOD12-2.5M-RS  - 2x 250mm End Units, 1x 1500mm strut, 1x 500mm strut

MOD12-3M-RS - 2x 250mm End Units, 1x 1500mm strut, 1x 500mm strut

MOD12-3.5M-RS - 2x 250mm End Units, 1x 1500mm strut, 1x 1000mm strut, 1x 500mm strut

MOD12-4M-RS - 2x 250mm End Units, 1x 1500mm strut, 1x 1000mm strut, 1x 750mm strut, 1x 250mm strut

MOD12 - BEAM SPECIFICATION

  • Rated at 12tonne SWL at 4mtr span (30° 'Sling to Vertical' angle)
  • For 45° 'Sling to Vertical' angle - please see loading chart for SWL

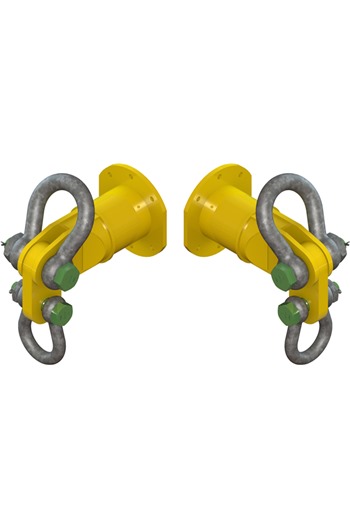

  • End Units & Drop Links are rated at 6tonnes WLL each (12tonnes combined capacity)
  • Bolt tightening torque: 90Nm.  Spanner size required: 19mm
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner
  • Fully certified and tested
  • Used by many of the leading Rental and Crane Hire companies
  • Lifting Slings sold separately - please see our Webbing Sling/Roundsling/Wire Rope Sling section for more details
  • Available for hire at very competitive rates (please contact us)



DELIVERY IS 2-3 DAYS FROM DATE OF ORDER



1.5mtr MOD12 12tonne Spreader Beam (Net Weight Per Item: 37.00kg):
Quantity:
1+
(£858.34 ex Vat)
1mtr MOD12 12tonne Spreader Beam (Net Weight Per Item: 30.00kg):
Quantity:
1+
(£830.11 ex Vat)
2.5mtr MOD12 12tonne Spreader Beam (Net Weight Per Item: 50.00kg):
Quantity:
1+
(£1,027.66 ex Vat)
2mtr MOD12 12tonne Spreader Beam (Net Weight Per Item: 42.00kg):
Quantity:
1+
(£888.77 ex Vat)
3.5mtr MOD12 12tonne Spreader Beam (Net Weight Per Item: 64.00kg):
Quantity:
1+
(£1,194.78 ex Vat)
3mtr MOD12 12tonne Spreader Beam (Net Weight Per Item: 56.00kg):
Quantity:
1+
(£1,055.89 ex Vat)
4mtr MOD12 12tonne Spreader Beam (Net Weight Per Item: 73.00kg):
Quantity:
1+
(£1,335.51 ex Vat)
