Special Offer Heightec D011 QUADRA Rescue Device

SPECIAL OFFER - CANCELLED ORDER - 1PC AVAILABLE

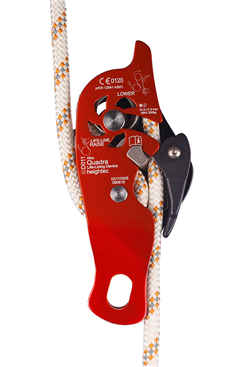

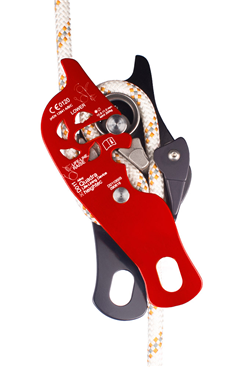

Heightec D011 QUADRA Rescue Device

The QUADRA rope device is used in rescue systems and has four different functions:-

• Life-lining – controlling a safety line attached to a rescuer
• Lowering – remotely controlling a load
• Hauling – self-locking load raising
• Descending – self lowering of operator

Operator is able to change from one function to another instantly, while rope is loaded and without adding additional components

Patented double-braking mechanism increases friction under heavy loading and reduces rate at which friction is released

Inspection and cleaning is simple as all component parts of device are visible and accessible

QUADRA is rated at 200 kg making it suitable for most rescue applications. It also has capacity to arrest a 250 kg load at fall factor 1/3 without damage to rope and retaining full function. All load bearing components are stainless steel for corrosion resistance and reduced spark hazard

The QUADRA (D011) can only be threaded with the connector removed, which helps to prevent tampering

It has been developed with and is extensively used by UK Fire Services and other industrial rescue teams

Features:-

• Multi-function, can change between functions under load
• Double-braking mechanism
• All component parts visible
• High load capacity
• Lightweight alloy construction

Specifications:-

• Sizing: For 10.5mm - 11mm rope
• Material: Aluminium
• EN Mass Test: 200kg
• Loading: 200kg SWL
• Weight: 0.35kg
• Conformity: EN 12841 C
