Reid Lifting RML Counterbalance Material Lift

More From This Brand

Add to New List

• Product Info

• Reid Lifting RML Counterbalance Material Lift

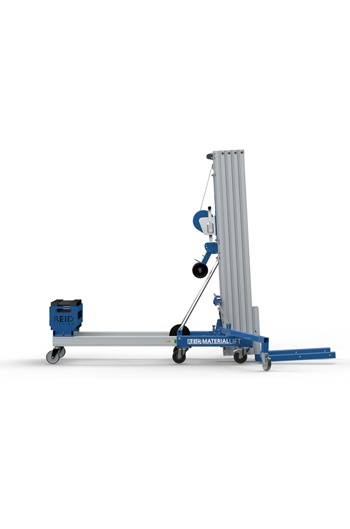

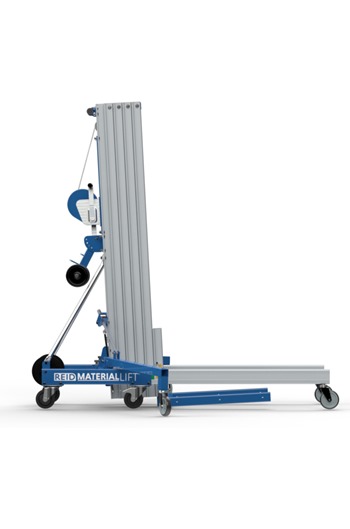

  Introducing the REID Material Lift (RML).  This Material Lift offers two versatile configurations in one, conventional forward facing and counterbalance, with the ability to switch between the two, tool free in minutes

  Vertical material lifting presents a common challenge across many industries, where the need for increased productivity, versatility and safety is critical

  The RML provides solutions that can significantly improve these aspects, making it a key asset in a wide range of industries and applications such as:-

  • M&E servicing and installation facilitation
  • Glass installment
  • Structural steel erection
  • General commercial & residential construction
  • Decommissioning and demolition work
  • Warehouse operations

  Key features:-

  • Full set of 360° castors with 2 locking castors - Enables easier maneuverability of the unit at ground level and allows safer and easier micro adjustment when working at height
  • Virtually silent winch - This helps reduce noise emissions, benefiting 'live' worksite environments and where communicatino with the operators at height is key
  • Easy to transport - The RML comes equipped with standard horizontal, rough ground transport wheels, enabling the unit to be moved safely over uneven surfaces and into vehicles
  • Unique rear pulley - wide rear pulley allows even cable feed on to the winch drum giving smooth operation and less cable stress
  • Quick change rear pulley - Quickly remove the rear pulley with just a single bolt, streamlining repair times and minimising downtime
  • Hardwearing alloy pulleys - standard across the range to increase service life and aid smooth operation
  • No ball lock pins - Detachable parts have a high chance of getting lost, that's why the RML uses captive plunger pins preventing lost pins that cause downtime
  • Anti twist galv steel cable - Cable replacement due to tangles and premature wear is common on other Material Lifts, to avoid the waste and additional operating cost we included a galvanised steel, anti-twist cable in all versions
  • Tool free - Easily converted from forward-facing to counterbalance configuation without the need for tools

  Available in 3000, 4500mm, 6000mm and 7500mm lifting heights (see attached data sheet for loading charts)

  Supplied with counterbalance basket (20kg test weights sold separately - 200kg required for Counterbalance use)

  Accessories available:-

  • Load Platform
  • Fork Extensions
  • Pipe Cradle
  • Boom Arm
• Specifications
• Additional Info
  Additional Information

  Data SheetInstruction Manual
• Price Breaks
• Reid Lifting RML-30 Counterbalance Material Lift, 3000mm lifting height, 450kg capacity (Net Weight Per Item: 133.00kg):

  Quantity:

  1+

  (£4,019.98 inc VAT)
  Reid Lifting RML-45 Counterbalance Material Lift, 4500mm lifting height, 360kg capacity (Net Weight Per Item: 156.00kg):

  Quantity:

  1+

  (£4,523.98 inc VAT)
  Reid Lifting RML-60 Counterbalance Material Lift, 6000mm lifting height, 360kg capacity (Net Weight Per Item: 183.00kg):

  Quantity:

  1+

  (£4,787.94 inc VAT)
  Reid Lifting RML-75 Counterbalance Material Lift, 7500mm lifting height, 300kg capacity (Net Weight Per Item: 206.00kg):

  Quantity:

  1+

  (£5,363.98 inc VAT)
