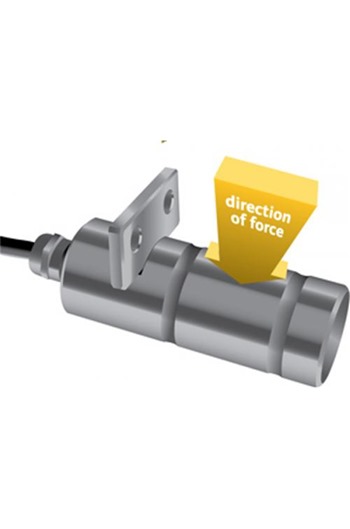

Straightpoint Load Pin

Straightpoint Load Pin

The Straightpoint range of Load Measurement Pins (LMP’s) are designed for use in applications where an end of line load cell cannot be used, meaning an integrated solution is required

Often a customised solution, they are manufactured from high tensile stainless steel and are normally supplied complete with an anti-rotation plate as a cabled or wireless solution

Built to withstand the harshest environments in industries such as marine and offshore oil and gas, they are suitable for use in exposed situations and can also be supplied to withstand immersion in seawater at extreme depths

Straightpoint Loadpins are typically connected to Straightpoint’s Handheld plus (sold separately) and come complete with a 10mtr cable

*** Please advise cable configuration on order - Radial or Axial pin exit ***

Appplications:-

• Marine tankers, offshore platforms
• Elevator and floor conveyor testing and certification
• Bearing blocks, pivots and shackles
• Cable laying equipment
• Rope, chain and brake anchors
• Bridge support cables
• Mooring lines
• Pulleys and sheaves
• Crane cables
• Hoisting gear
• Winches
• Design validated by F.E.A
