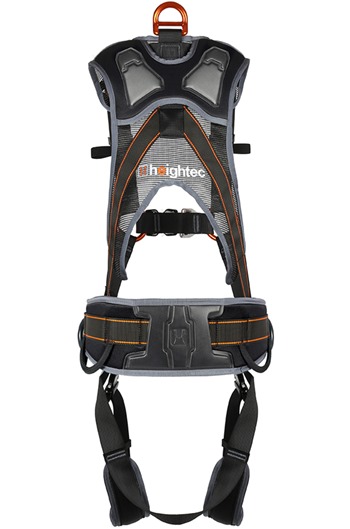

Heightec H34Q VORTEX Wind Turbine Harness

Heightec H34Q VORTEX Wind Turbine Harness

Lightweight multi-purpose harness with integrated belt, designed specifically for the renewables industry

The new lightweight VORTEX harness with integrated waist belt is designed for work positioning and fall arrest

The breathable low profile back panel and waist pad provide support and protection while climbing.  The waist pad is fitted with two side D’s

SafeLock™ quick connect leg, waist and chest buckles make fitting fast and easy. Quick connect buckles also allows the harness to be removed without the need for re-adjustment

Shoulder buckles allow quick and easy adjustment with one hand making the harness easily adjustable for offshore use. Elastic webbing retainers on strap ends allow slack webbing to be stowed neatly and easily

Chest rings align the webbing to ensure a good fit giving maximum comfort and security

The rear attachment point is positioned at the nape of the neck to eliminate discomfort when climbing WTG ladders. This high rear point ensures a more vertical orientation of the casualty when  lowering during rescue and reduces risk of interference with the ladder rungs

The integrated parking points allow lanyards to be stowed when not in use, yet break free in a fall preventing issues from incorrect loading. These are positioned on the shoulder pads to avoid the trip hazard associated with longer lanyards

The VORTEX wind turbine harness complies with Siemens PPE requirements PRO-13838 Ap1

Sizes available:-

• H34Q VORTEX quick connect, standard – Torso 95 – 125 cm. Waist 80 – 120 cm. Thigh 65 – 105 cm
• H34QL VORTEX quick connect, large – Torso 115-150 cm. Thigh 65 – 125 cm

Features:-

• High rear attachment point
• Low profile breathable back panel and waist pad
• Plastic wear protection in key areas
• Rapid fitting for emergency evacuation
• Contoured fit for comfort and freedom of movement
• SafeLock™ quick connect leg loop and chest buckles
• Integral lanyard parking points
• High load rating 140 kg

Specifications:-

• Sizing: Standard
• Material: Polyamide, Stainless Steel & Aluminium.
• EN Mass Test: 140kg
• Loading: Fall Arrest Loads
• Weight: 2 kg
• Conformity: EN 361, EN 358
