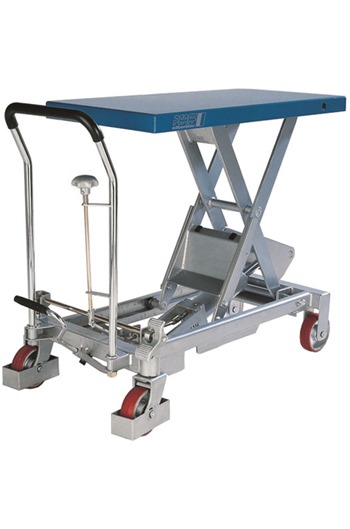

• Pfaff HX750 750kg Scissor Lift Platform Table

  The Pfaff HX750 is a Hydraulic Workshop Platform with adjustable height, suitable for all manufacturing, packing and workshop applications

  Hydraulic foot pump lifts the Table with minimal effort

  Lowering action is via a release cable, this safely lowers the load

  The lockable wheel feature adds stability and safety to the Platform Table

  Robust construction with hard chromium plated piston and pressure relief valve

  Model: HX750

  Lifting capacity: 750kg

  Rollers: Polyurethane

  Overall unit height: 990mm

  Overall unit length: 1330mm

  Max height of platform: 1000mm

  Min height of platform: 420mm

  Platform length: 1000mm

  Platform width: 510mm

  Floor/ground clearance: 72mm

  Lift height per stroke: 15mm

  Weight: 120kgs



• Specifications
• BrandPFAFF

  Product Weight120kg

  Product ColourSilver & Navy

  Material.

  Maximum Lift Height1000mm

  Lift Range580mm

  Closed Height420mm

  Ground Clearance72mm

  Handle Height.

  Overall Height990mm

  Overall Length1330mm

  Overall Width600mm

  Platform Length1000mm

  Platform Width510mm

  Platform Thickness.

  W.L.L.750kg

  OperationManual

  Foot Pedal Cycle to Maximum Lift.

  Lift Height per Pedal Cycle15mm

  Lift Time.

  Lowering Time.

  Wheel Material Polyurethane

  Wheel Type.

  Wheel Diameter147mm

  Wheel Width50mm

  Available for HireNo

  CE / UKCA Marked.

  Conforms to EN Standard.

  Certification Supplied.

  Inspection Period (From date of first use).

  Warranty.

  Custom Made ProductNo

  Included in Return Policy No

  Third Party Supplied Yes

  Additional Information

  Data Sheet
• Price Breaks
• Pfaff HX750 750kg Scissor Lift Platform Table (Net Weight Per Item: 120.00kg):

  Quantity:

  1+

  (£809.33 inc VAT)
