1000kg Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

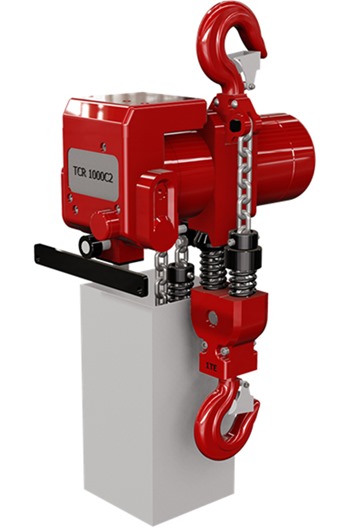

RED ROOSTER TCR-1000/2 1000kg PNEUMATIC AIR LIFTING HOIST

The TCR-1000/2 Air Hoist is the ideal choice for lifting applications that require fast lifting speeds, consistant use or simply where there is no access to power

Powered by a compressed air feed means this Hoist has a 100% duty cycle so is perfect for constant use

The Hoist is operated by cord control which is attached to a bracket on the Hoist valve

ATEX zone 2 specification

Lifting heights: 3mtr to 10mtr (please contact us for longer lifting heights)

Compact and lightweight body, aluminium housing

1/2" Filter lubricator regulator c/w gauge must be used and can be supplied extra (please contact us for a price)

Features:-

• Model: TCR-1000/2
• SWL: 1000kg
• Lifting heights available: 3mtr to 10mtr (please contact us for longer lifting heights)
• Chain falls: 2
• Chain size: 6.3 x 19.1mm
• Control type: Cord control (pendant control available - please contact us for details)
• Lifting speed (full load): 5.3mtrs/min
• Lifting speed (no load): 9.5mtrs/min
• Lowering speed (with load): 9mtr/min
• Air consumption: 13litres/second @ 6.3 Bar
• Air connection: 1/2" BSP, min hose dia 1/2"
• Working pressure: 6 Bar
• Failsafe automatic internal disc brake
• Upper & lower limit switches
• ATEX zone 2 specification
• Fully certified
• PVC Chainbag included
• Weight with 3mtr HOL:35.2kg
• Weight per addtional metre HOL: 1.6kg
