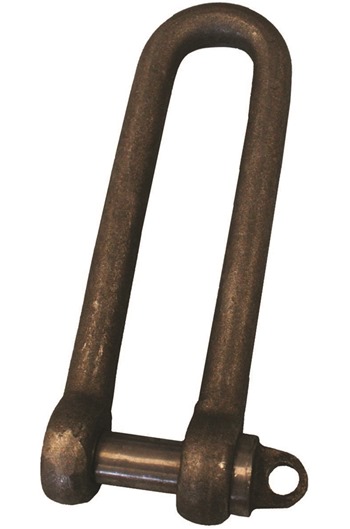

1ton Long Body Piling Shackle

More From This Brand

Add to New List

• Product Info

• The 1T Long Body Piling Screw Pin Shackle is a heavy-duty shackle with an elongated body designed to give extra clearance, making it ideal for safely lifting and handling piling materials where standard shackles are too short or restrictive.

  Key Features

  ---

  • Longer body (extended D-shape): Provides extra internal clearance compared to standard bow or D shackles.
  • This extra length allows the shackle to accommodate the wider or thicker sections of piles and lifting chains.
  • Reduces strain and improves efficiency during piling.
• Specifications
• BrandLiftinGear

  Suitable ForPiling Operations, Heavy Lifting, Construction & Offshore.

  Product Weight0.55kg

  Product ColourSelf Colour

  Product FinishSelf Colour

  MaterialSteel

  Internal Length152mm

  Internal Width22mm

  Thickness13mm

  W.L.L.1Ton

  Safety Factor.

  Shackle TypePiling

  Pin TypeScrew Pin

  Pin Diameter 16mm

  Available for HireYes

  CE / UKCA MarkedYes

  Conforms to EN Standard.

  Certification SuppliedDeclaration of Conformity

  Inspection Period (From date of first use)6 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No
  Additional Info
  Additional Information

  DATA/SPECIFICATION SHEET
• Price Breaks
• 1ton Long Body Piling Shackle (Net Weight Per Item: 0.55kg):

  Quantity:

  1 - 9

  (£13.24 inc VAT)

  Quantity:

  10 - 19

  (£12.91 inc VAT)

  Quantity:

  20 - 29

  (£12.74 inc VAT)

  Quantity:

  30+

  (£12.57 inc VAT)
