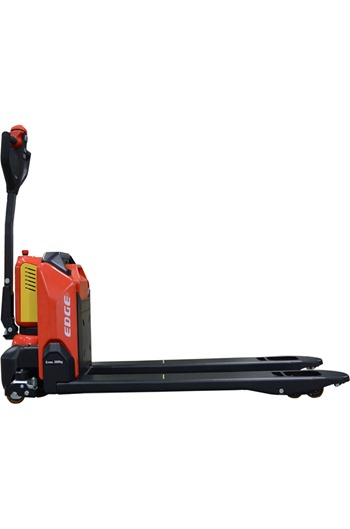

2000kg 'Edge' Fully-electric Battery Pallet Truck 540x1150mm
PTE20N 2000kg 'Edge' Fully-Electric Battery Pallet Truck Product Description
This new model of Electric Pallet Truck is a new innovative product with cutting-edge design based on decades of experience. It combines the advantages of manual and electric Pallet Trucks to allow for the effortless transportation of light and medium duty materials.
Electric Pallet Truck Key Features:
- Minimum charge time: 2.5hrs
- Fully electric driven and electric lifting
- Fork dimensions: 540mm wide x 1150mm long
- Overall length: 1536mm
- Lift height: 115mm
- Height lowered: 80mm
- Lithium battery weight: 7.5kg
- Individual fork width: 160mm
- Internal gap between forks: 220mm
- Travel speed laden/unladen: 4.8/5.2km/h
- 2000kg capacity
- 3-6hrs working time on the battery (additional batteries sold separately)
The 'Edge' electric pallet truck is equipped with maintenance-free 48V/20Ah Lithium battery with optional different capacities for various applications. The integrated BMS (battery maintenance system) controls all important parameters and performance of the Lithium Battery.
The socket on the battery case makes it easy for charging without having to take the battery out, meaning fast charging during breaks in operations. The frame of the truck is surrounded by stamped steel elements ensuring the protection of all components.
The shape of the forks allows easy entrance and exit from pallets. The strong steel apron protects the operator's feet during work and secures the Truck's components from collisions with objects.
The Truck has a capacity of 2000kg and ability to overcome ramps up to 7/16% (laden/unladen), making it suitable for work in loading docks and any other delivery operations in difficult conditions.
The minimised service weight of 149kg makes it ideal for use by delivery lorries with tail lift platforms. The turning radius of 1336mm with lifted/lowered forks make this Truck extremely compact and ideal for use in confined spaces of retail stores, elevators, or business centres.
This electric pallet truck is intended to be used for indoor applications with ambient temperatures between +5°C and +40°C, and for various transportation applications without crossing permanent obstacles or potholes.
