2500kg Aluminium Gantry, 5mtr beam, 2200-3600mm

Product Code: ALU-GAN-M-5M
Product Info
Specifications
Price Breaks

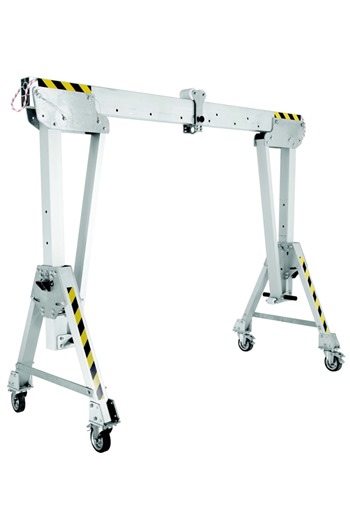

Easy Rig Aluminium Gantry



The Easy-Rig Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads

This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

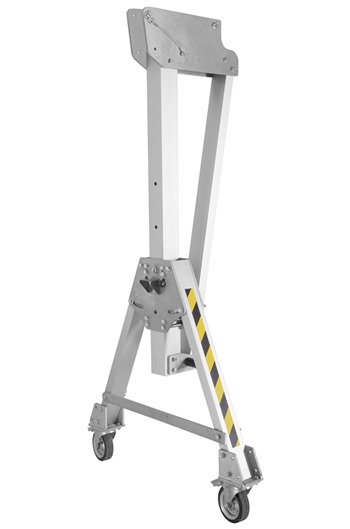

Supplied as two A-Frames and one Beam, this Gantry is lightweight and easy to transport

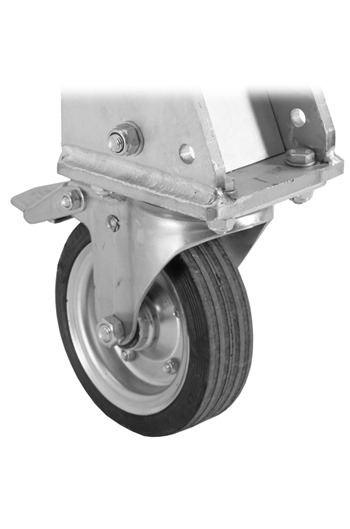

A-Frames are supplied with 160mm diameter 360° castors wih brake

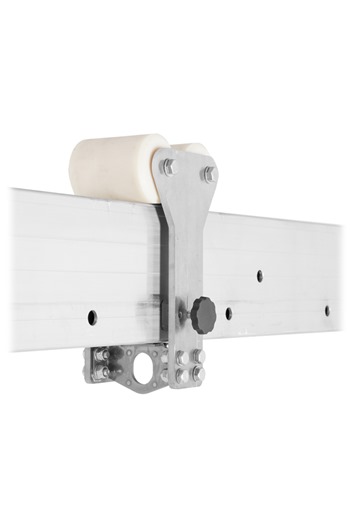

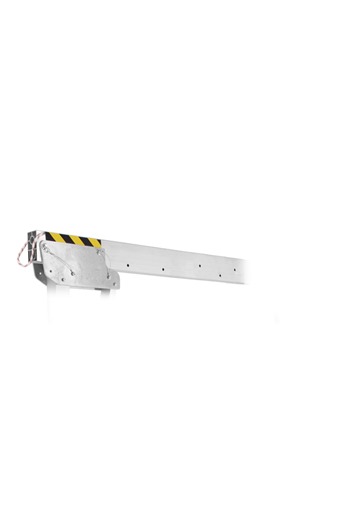

Beam is supplied with External Trolley for lifting applications and hitch for raising the support

Beams are interchangeable which means longer or shorted beams can be added (always check the Instruction manual for WLL if the beam is changed over)

Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-T Lifting Winch

SWL: 2500kg

Support height: 2200-3600mm

Support height increment: 200mm

Beam length: 5mtrs

Working span: 3770mm

Bottom span: 4496mm

Total weight of Gantry: 166.9kg

Fully certified and tested

Full range of additional products available such as Parking Jacks, extra Trolleys - please contact us for more details
