The ActionRam HHYG-3050K is a high-performance hydraulic hollow cylinder designed for demanding industrial and mechanical applications requiring precision, power, and versatility. With a maximum lifting capacity of 30 tonnes and a 50mm stroke, this compact yet powerful cylinder is ideal for pulling, tensioning, and lifting operations where a central pass-through is required

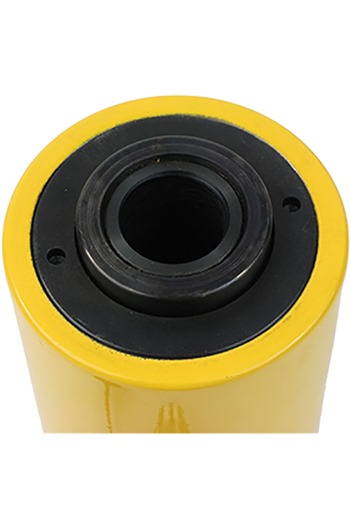

One of the key advantages of this model is its hollow centre design, featuring a 33mm internal bore. This allows threaded rods, bolts, cables, or puller assemblies to pass directly through the centre of the cylinder. As a result, the HHYG-3050K is ideally suited for bolt tensioning, bearing and bushing removal, flange alignment, structural pulling operations, and cable tensioning, offering far greater versatility than conventional hydraulic cylinders
Key Features
- Heavy-Duty Construction: Built from high-strength steel for long-lasting performance and resistance to wear and tear
- Hollow Centre Design: Featuring a 33mm internal bore allowing threaded rods, bolts, cables, or puller assemblies to pass directly through the centre of the Cylinder
- Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
- High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications
- Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
- Orientation: Designed to operate effectively in any position, horizontal or vertical, offering versatility across a wide range of setups
- Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
- Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance
Specifications
- Model: HHYG-3050K
- Lifting Capacity: 30tonne
- Stroke: 50mm
- Open Height: 230mm
- Closed Height: 180mm
- Outer Diameter: 114mm
- Centre hole: 33mm
- Oil Capacity: 239cc
- Maximum Working Pressure: 700 Bar (10,000 PSI)
- Weight: 9kg
Recommended Accessories
- Hydraulic Hand Pump: HHB-700
Applications
- Fastening & Tensioning
- Construction & Structural Engineering
- Manufacturing & Industrial Equipment
- Maintenance & Heavy Equipment Service
- Oil, Gas & Energy
- Testing & Measurement
- Automotive & Aerospace
- Railway Maintenance
