3000kg Aluminium Gantry, 3mtr beam, 1600-2200mm

Product Code: ALU-GAN-S-3M
Product Info
Price Breaks

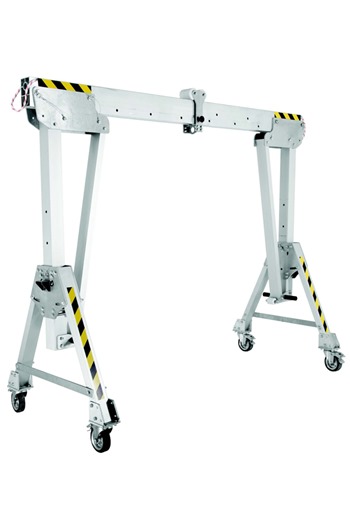

Easy Rig Aluminium Gantry


The Easy-Rig Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads

This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

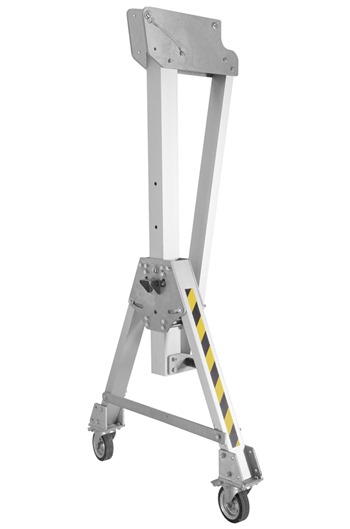

Supplied as two A-Frames and one Beam, this Gantry is lightweight and easy to transport

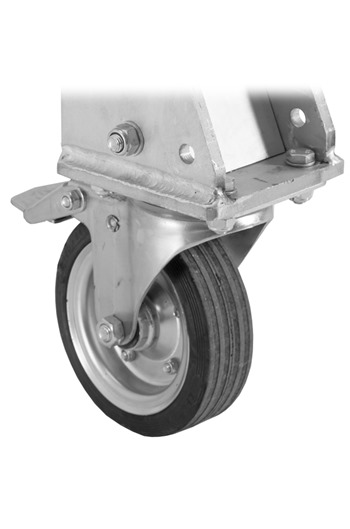

A-Frames are supplied with 160mm diameter 360° castors wih brake

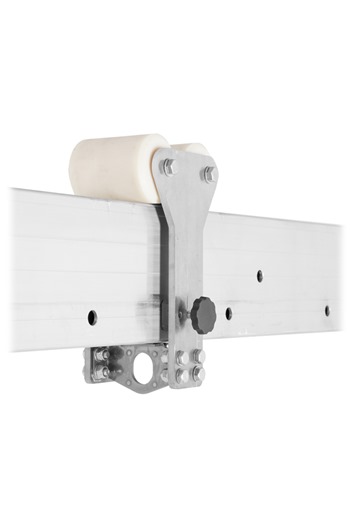

Beam is supplied with External Trolley for lifting applications and hitch for raising the support

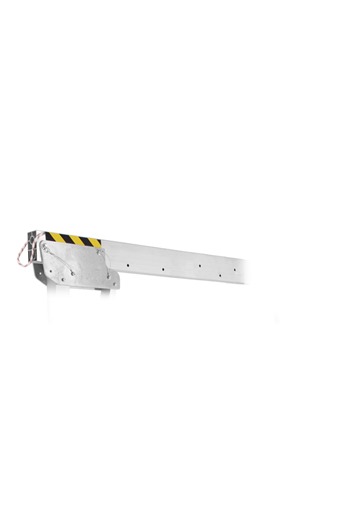

Beams are interchangeable which means longer or shorted beams can be added (always check the Instruction manual for WLL if the beam is changed over)

Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-T Lifting Winch

SWL: 3000kg

Support height: 1600-2200mm

Support height increment: 200mm

Beam length: 3mtrs

Working span: 1770mm

Bottom span: 2496mm

Total weight of Gantry: 132.5kg

Fully certified and tested

Full range of additional products available such as Parking Jacks, extra Trolleys - please contact us for more details

*Dispatched within 72 Hours From Time of Order*

  Exclusive Web Only Price!

£5,132.07£4,276.73 (ex VAT)
(£2,969.95 ex VAT)

£3,831.24 Each inc VAT
(£3,192.70 ex VAT)
