500kg High Speed Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

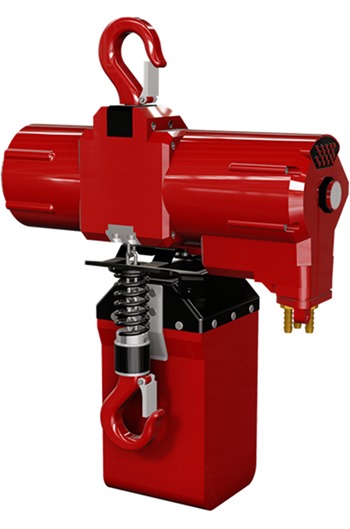

RED ROOSTER TCS-500 500kg HIGH SPEED PNEUMATIC AIR LIFTING HOIST

The TCS-500 500KG SINGLE FALL HIGH-SPEED AIR HOIST is perfect for lifting situations that require fast lifting speeds, constant use, or environments with no power source access.

This high-speed hoist with a 500kg lifting capacity is powered by a compressed air feed which mean the hoist has a 100% duty cycle, so it’s perfect for constant use. The lifting capacity and duty cycle makes this hoist perfect for lifting loads with ease and precision.

This high-speed hoist is operated by cord control attached to a bracket on the Hoist valve

ATEX zone 2 specification

Lifting heights: 3mtr to 12mtr (please contact us for longer lifting heights)

Compact and lightweight body, aluminium housing

1/2" Filter lubricator regulator c/w gauge must be used and can be supplied extra (please contact us for a price)

Features:-

• Model: TCS-500
• SWL: 500kg
• Lifting heights available: 3mtr to 12mtr (please contact us for longer lifting heights)
• Chain falls: 1
• Chain size: 6.3 x 19.1mm
• Control type: Cord control (pendant control available - please contact us for details)
• Lifting speed (full load): 17mtrs/min
• Lifting speed (no load): 33mtrs/min
• Lowering speed (with load): 34mtr/min
• Air consumption: 28litres/second @ 6.3 Bar
• Air connection: 1/2" BSP, min hose dia 1/2"
• Working pressure: 6 Bar
• Failsafe automatic internal disc brake
• Upper & lower limit switches
• Fully certified
• PVC Chain bag included
• Weight with 3mtr HOL: 19kg
• Weight per additional metre HOL: 0.8kg
