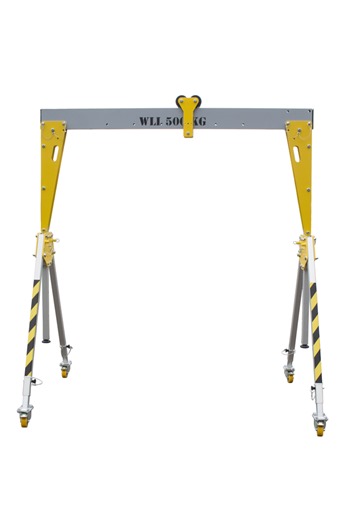

500kg Lightweight Aluminium Gantry c/w 2mtr Beam

Product Code: KSB-ALU-GAN-2MTR
  • Product Info
  • Easy Rig



    The Easy-Rig KSB Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads.

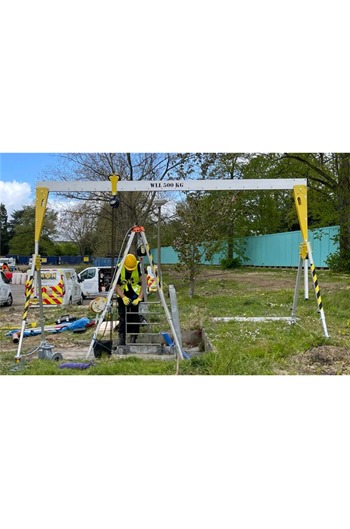

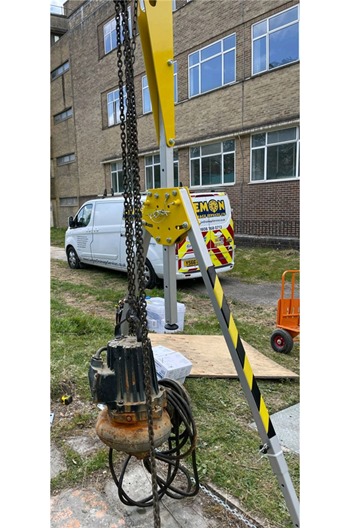

    This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

    The KSB Gantry is supplied in 3x lightweight parts, a beam and 2x frames for easy handling and transportation

    Another key feature of the KSB Gantry is the option to purchase different length beams (3mtr and 4mtr) to use with the frames

    Fully adjustable in height from 2100 - 3000mm (support height)

    Easy to errect

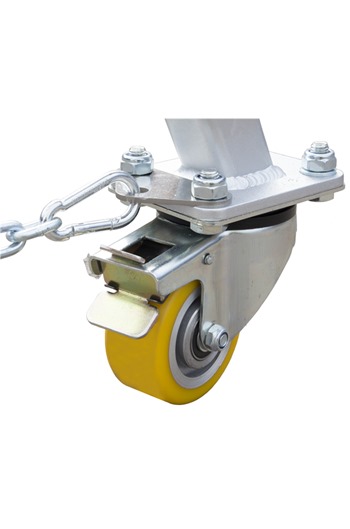

    A-Frames are supplied with 360° castors wih brake

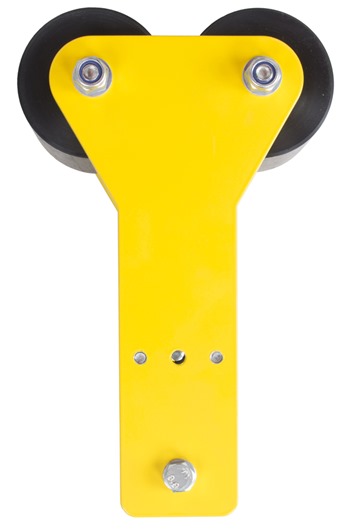

    Beam is supplied with External Trolley for lifting applications

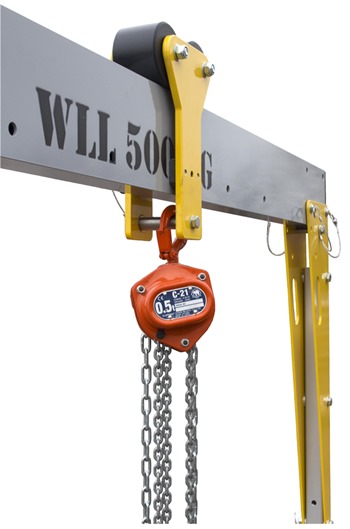

    Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-DT Lifting Winch (sold seperately)

    SWL: 500kg

    Support height: 2100 - 3100mm

    Total beam length: 2mtrs

    Total weight of Gantry: 49kg

    Fully certified and tested



  • Specifications
  • Additional Info
  • Price Breaks
  • 500kg Lightweight Aluminium Gantry c/w 2mtr Beam (Net Weight Per Item: 49.00kg):
    Quantity:
    1+
    (£1,822.74 inc VAT)

  Exclusive Web Only Price!

Was:
£2,624.75£2,187.29 (ex VAT)
Now:
£1,822.74
(£1,518.95 ex VAT)
£1,959.45 Each inc VAT
(£1,632.87 ex VAT)
Delivery
Stock availability:
Low
Quantity:
FIND DEPOT


Ask SafetyLiftinGear a Question

Login or Register to Ask a Question
  • Can i purchase the mounting pin and the unlocking button separately. Many thanks Scott
  • Please contact clickandcollectbri@safetyliftingear.com to see if we stock the spare part so that you can place your order.

    Asked By: Scott | 24/01/2024
  • Do you supply the pins for the legs to the A Frame. Many thanks Scott
  • Please contact clickandcollectbri@safetyliftingear.com to see if we stock the spare part so that you can place your order.

    Asked By: Scott | 24/01/2024
  • With regards this product KSB-ALU-GAN-2MTR what is the total lowest height this can go to including the external trolley wheels please? I need a lifting frame that goes into and can move around in a room 2.2 meters high!
  • Unfortunately this product is not suitable for your needs as the lowest height is 2314mm

    Asked By: Dan | 23/08/2023
