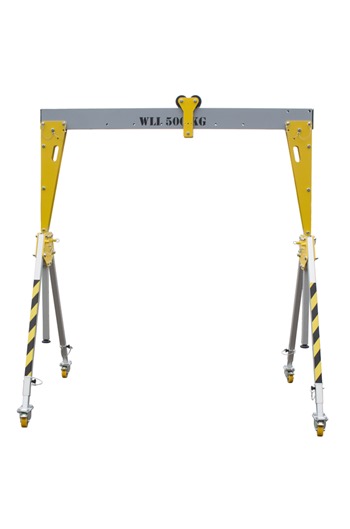

500kg Lightweight Aluminium Gantry c/w 3mtr Beam

The Easy-Rig KSB Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads.

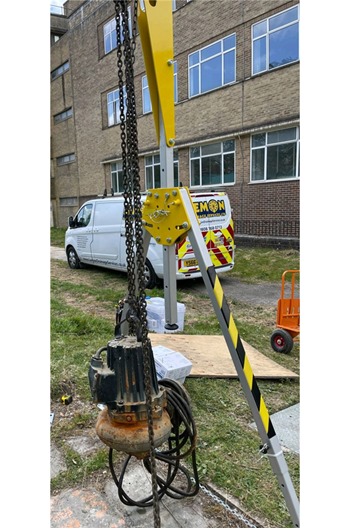

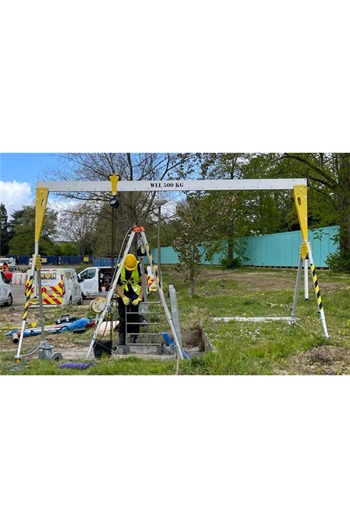

This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

The KSB Gantry is supplied in 3x lightweight parts, a beam and 2x frames for easy handling and transportation

Another key feature of the KSB Gantry is the option to purchase different length beams (2mtr and 4mtr) to use with the frames

Fully adjustable in height from 2100 - 3000mm (support height)

Easy to errect

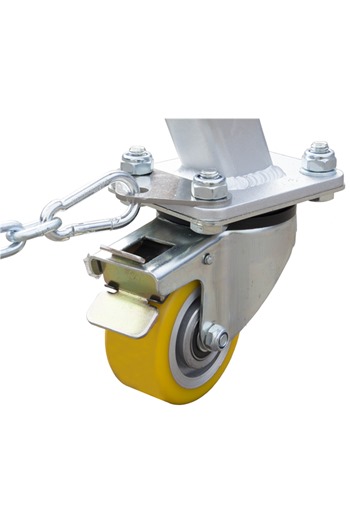

A-Frames are supplied with 360° castors wih brake

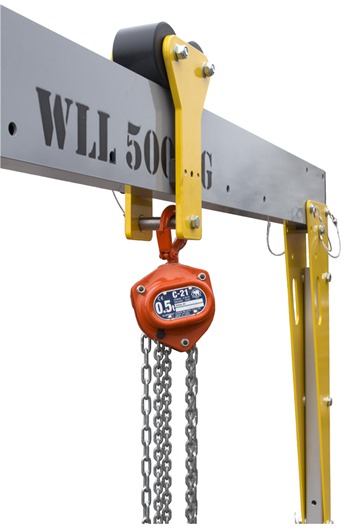

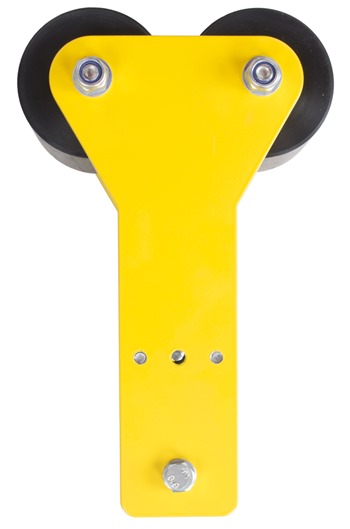

Beam is supplied with External Trolley for lifting applications

Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-DT Lifting Winch (sold seperately)

SWL: 500kg

Support height: 2100 - 3000mm

Total beam length: 3mtrs

Total weight of Gantry: 58kg

Fully certified and tested
