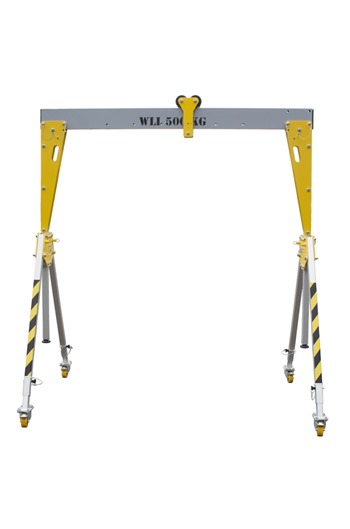

The Easy-Rig KSB Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads.
This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more
The KSB Gantry is supplied in 3x lightweight parts, a beam and 2x frames for easy handling and transportation
Another key feature of the KSB Gantry is the option to purchase different length beams (2mtr and 3mtr) to use with the frames
Fully adjustable in height from 2100 - 3000mm (support height)
Easy to errect

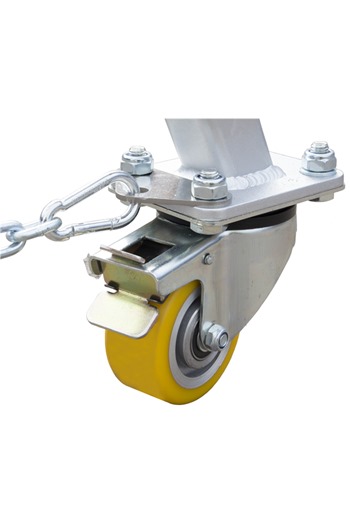

A-Frames are supplied with 360° castors wih brake

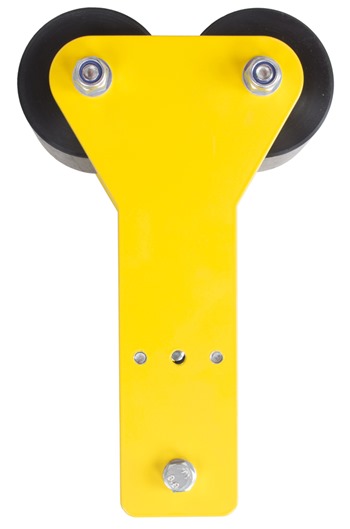

Beam is supplied with External Trolley for lifting applications

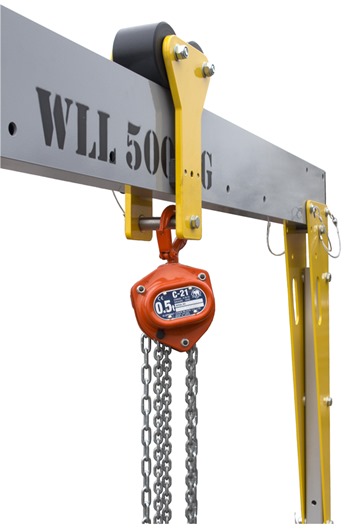

Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-DT Lifting Winch (sold seperately)
SWL: 500kg
Support height: 2100 - 3000mm
Total beam length: 4mtrs
Total weight of Gantry: 62kg
Fully certified and tested
