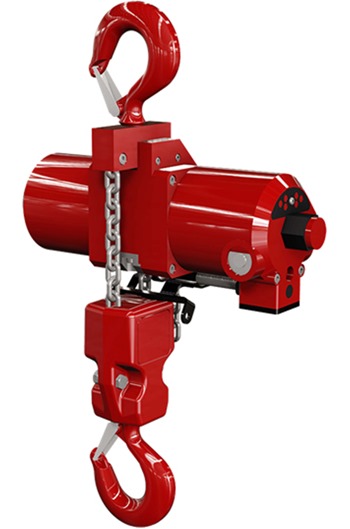

RED ROOSTER TCR-500/2 500kg PNEUMATIC AIR LIFTING HOIST

The TCR-500/2 Air Hoist is the ideal choice for lifting applications that require fast lifting speeds, consistant use or simply where there is no access to power

Powered by a compressed air feed means this Hoist has a 100% duty cycle so is perfect for constant use

The Hoist is operated by cord control which is attached to a bracket on the Hoist valve

ATEX zone 2 specification

Lifting heights: 3mtr to 10mtr (please contact us for longer lifting heights)

Compact and lightweight body, aluminium housing

Features:-

  • Model: TCR-500/2
  • SWL: 500kg
  • Lifting heights available: 3mtr to 10mtr (please contact us for longer lifting heights)
  • Chain falls: 2
  • Chain size: 4 x 12mm
  • Control type: Cord control (pendant control available - please contact us for details)
  • Lifting speed (full load): 4.6mtrs/min
  • Lifting speed (no load): 9.5mtrs/min
  • Lowering speed (with load): 9mtr/min
  • Air consumption: 13litres/second @ 6.3 Bar
  • Air connection: 1/2" BSP, min hose dia 1/2"
  • Working pressure: 6 Bar
  • Failsafe automatic internal disc brake
  • Upper & lower limit switches
  • ATEX zone 2 specification
  • Fully certified
  • PVC Chainbag included
  • Weight with 3mtr HOL: 9kg
  • Weight per addtional metre HOL: 0.7kg
