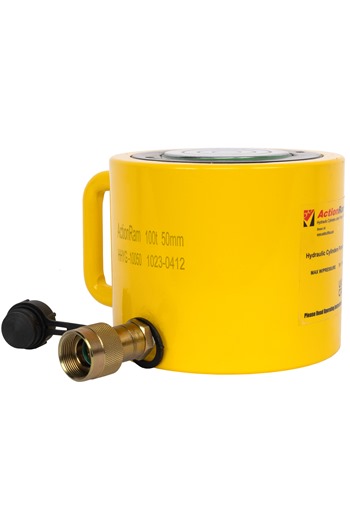

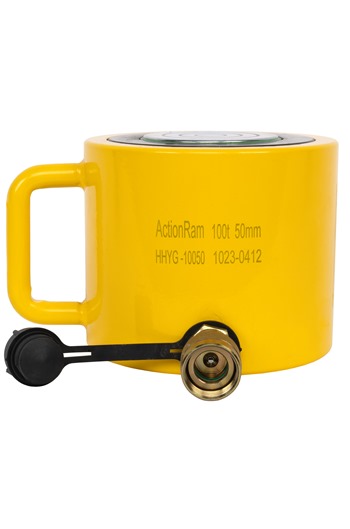

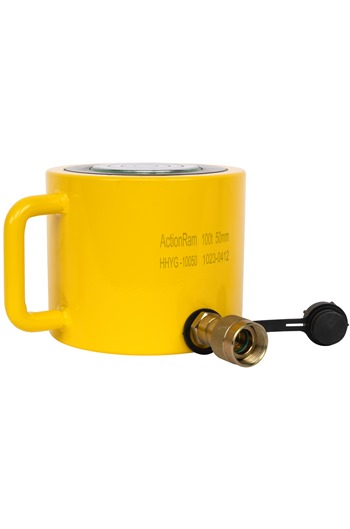

ActionRam 100tonne, 50mm Stroke Hydraulic Low Height Shorty Cylinder

Product Code: HHYG-10050
  • Product Info
  • The HHYG-10050 is a compact and robust low-height Hydraulic Cylinder, engineered for applications where space is limited but high force is required. Ideal for lifting, pushing, or positioning heavy loads in tight areas, this model is part of our industrial-grade range designed for professional use across various sectors, including construction, maintenance, manufacturing, and heavy equipment repair

    Key Features


    • Low Profile Design: The cylinder's low closed height of 142mm makes it ideal for operations where space is severely restricted
    • Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
    • High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications
    • Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
    • Orientation: Designed to operate effectively in any position, horizontal or vertical, offering versatility across a wide range of setups
    • Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
    • Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance

    Specifications


    • Model: HHYG-10050
    • Lifting Capacity: 100tonne
    • Stroke: 50mm
    • Open Height: 192mm
    • Closed Height: 142mm
    • Outer Diameter: 178mm
    • Oil Capacity: 833cc
    • Maximum Working Pressure: 700 Bar (10,000 PSI)
    • Weight: 18kg



    Recommended Accessories


    • Hydraulic Hand Pump: HHB-700-2000cc

    Applications


    • Heavy machinery installation and maintenance
    • Steel structure alignment
    • Bridge bearing replacement
    • Construction jacking tasks
    • Precision lifting in confined areas
    • Workshops
    • Railway Maintenance
  • Alternative Products
  • Specifications
  • BrandActionRam
    Product Weight18kg
    Product ColourBlack & Yellow
    W.L.L.100tonne
    Stroke50mm
    Inside Diameter / Bore 135mm
    Oil Capacity 833cc
    Maximum Operating Pressure 700bar
    Open Height 192mm
    Closed Height 142mm
    Acting Single Acting Cylinder
    Available for HireYes
    Warranty12 Months
    Custom Made ProductNo
    Included in Return Policy Yes
    Third Party Supplied No
