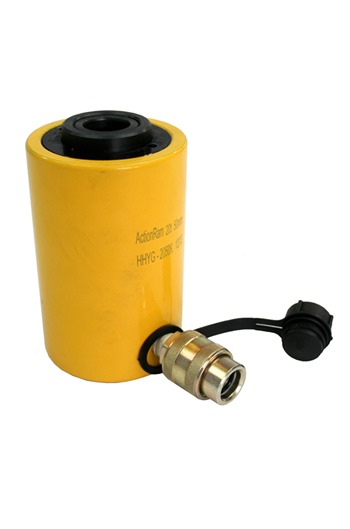

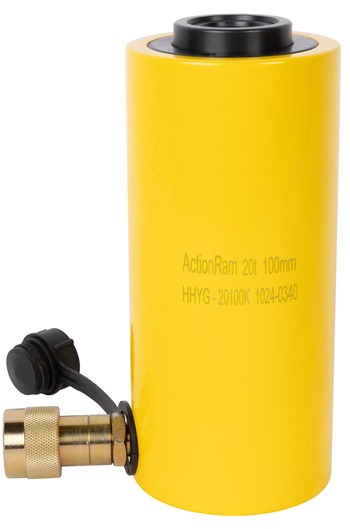

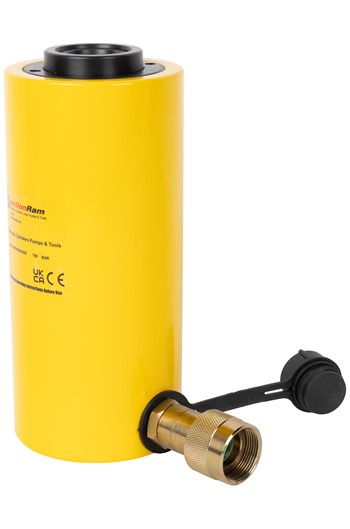

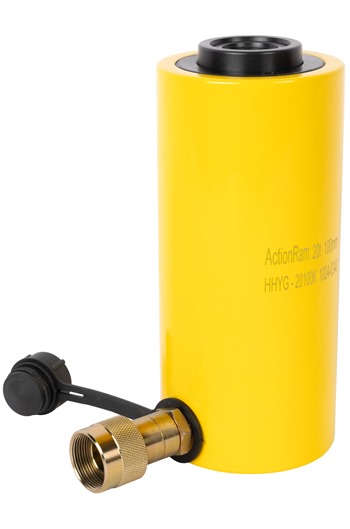

ActionRam 20tonne, 100mm Stroke Hydraulic Hollow Cylinder

More From This Brand

Add to New List

• Product Info

• The ActionRam HHYG-20100K is a high-performance hydraulic hollow cylinder designed for demanding industrial and mechanical applications requiring precision, power, and versatility. With a maximum lifting capacity of 20 tonnes and a 100mm stroke, this compact yet powerful cylinder is ideal for pulling, tensioning, and lifting operations where a central pass-through is required

  One of the key advantages of this model is its hollow centre design, featuring a 27mm internal bore. This allows threaded rods, bolts, cables, or puller assemblies to pass directly through the centre of the cylinder. As a result, the HHYG-20100K is ideally suited for bolt tensioning, bearing and bushing removal, flange alignment, structural pulling operations, and cable tensioning, offering far greater versatility than conventional hydraulic cylinders

  Key Features

  ---

  • Heavy-Duty Construction: Built from high-strength steel for long-lasting performance and resistance to wear and tear
  • Hollow Centre Design: Featuring a 27mm internal bore allowing threaded rods, bolts, cables, or puller assemblies to pass directly through the centre of the Cylinder
  • Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
  • High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications

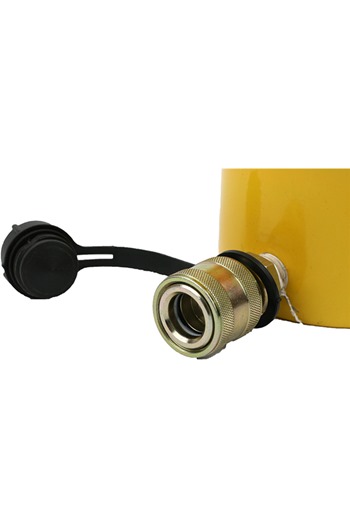

  • Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
  • Orientation: Designed to operate effectively in any position, horizontal or vertical, offering versatility across a wide range of setups
  • Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
  • Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance

  Specifications

  ---

  • Model: HHYG-20100K
  • Lifting Capacity: 20tonne
  • Stroke: 100mm
  • Open Height: 323mm
  • Closed Height: 223mm
  • Outer Diameter: 98mm
  • Centre hole: 27mm
  • Oil Capacity: 292cc
  • Maximum Working Pressure: 700 Bar (10,000 PSI)
  • Weight: 10kg

  Recommended Accessories

  ---

  • Hydraulic Hand Pump: HHB-700

  Applications

  ---

  • Fastening & Tensioning
  • Construction & Structural Engineering
  • Manufacturing & Industrial Equipment
  • Maintenance & Heavy Equipment Service
  • Oil, Gas & Energy
  • Testing & Measurement
  • Automotive & Aerospace
  • Railway Maintenance
• Alternative Products
•

  Hi-Force HHS202 23tonne Hollow Cylinder 50mm stroke

  £802.34inc VAT

  View Product



  Hi-Force HHS206 23tonne Hollow Cylinder 150mm stroke

  £1,438.64inc VAT

  View Product
• Specifications
• BrandActionRam

  Product Weight10kg

  W.L.L.20tonne

  Stroke100mm

  Oil Capacity 292cc

  Maximum Operating Pressure 700bar

  Open Height 323mm

  Closed Height 223mm

  Acting Single Acting Cylinder

  Available for HireYes

  Warranty12 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No

  Centre Hole27mm
