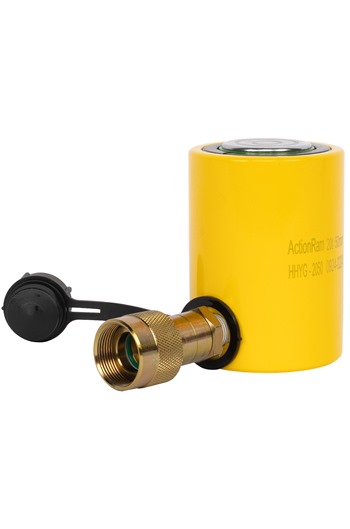

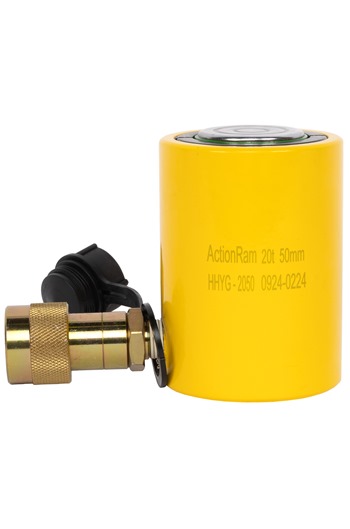

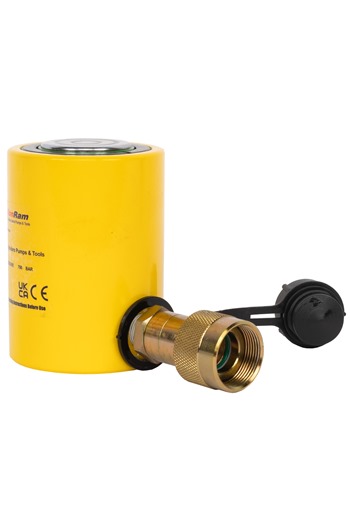

ActionRam 20tonne, 50mm Stroke Hydraulic Low Profile Cylinder

More From This Brand

Add to New List

• Product Info

• The HHYG-2050 is a compact and robust low-height Hydraulic Cylinder, engineered for applications where space is limited but high force is required. Ideal for lifting, pushing, or positioning heavy loads in tight areas, this model is part of our industrial-grade range designed for professional use across various sectors, including construction, maintenance, manufacturing, and heavy equipment repair

  Key Features

  ---

  • Low Profile Design: The cylinder's low closed height of 108mm makes it ideal for operations where space is severely restricted
  • Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
  • High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications
  • Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
  • Orientation: Designed to operate effectively in any position, horizontal or vertical, offering versatility across a wide range of setups
  • Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
  • Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance

  Specifications

  ---

  • Model: HHYG-2050
  • Lifting Capacity: 20tonne
  • Stroke: 50mm
  • Open Height: 158mm
  • Closed Height: 108mm
  • Outer Diameter: 83mm
  • Oil Capacity: 157cc
  • Maximum Working Pressure: 700 Bar (10,000 PSI)
  • Weight: 4.3kg

  Recommended Accessories

  ---

  • Hydraulic Hand Pump: HHB-700

  Applications

  ---

  • Heavy machinery installation and maintenance
  • Steel structure alignment
  • Bridge bearing replacement
  • Construction jacking tasks
  • Precision lifting in confined areas
  • Workshops
  • Railway Maintenance
• Alternative Products
•

  Hi-Force HLS201 20tonne Low Height Cylinder 44mm stroke

  £447.60inc VAT

  View Product
• Specifications
• BrandActionRam

  Product Weight4.3kg

  Product ColourBlack & Yellow

  W.L.L.20tonne

  Stroke50mm

  Inside Diameter / Bore 60mm

  Oil Capacity 157cc

  Maximum Operating Pressure 700bar

  Open Height 158mm

  Closed Height108mm

  Acting Single Acting Cylinder

  Available for HireYes

  Warranty12 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No
  Additional Info
  Additional Information

  Data SheetInstruction Manual
