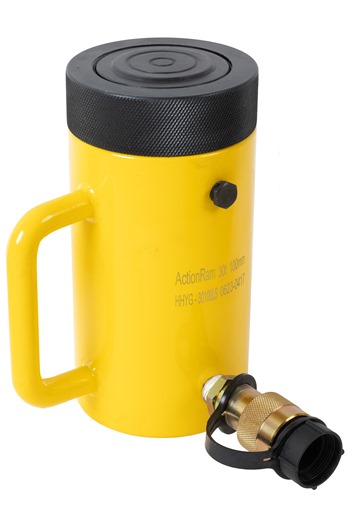

The ActionRam HHYG-30100LS is a high-performance 30tonne Hydraulic Lock Nut Cylinder designed for precision lifting, secure load holding, and compact versatility across a wide range of industrial, construction, and maintenance applications
Key Features

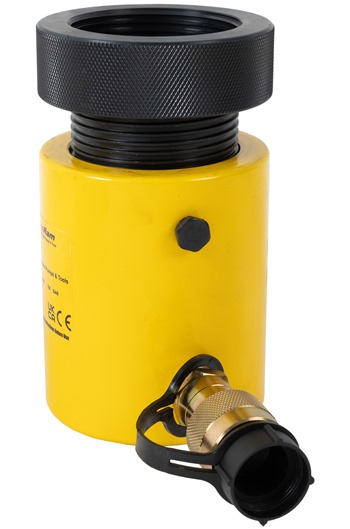

- Safety Lock Nut for Mechanical Load Holding: Equipped with a heavy-duty threaded lock nut, the cylinder allows for mechanical load holding even after the hydraulic pressure is released—ideal for long-duration or safety-critical lifts
- Overflow Port as Stroke Limiter: The built-in overflow port prevents over-extension by acting as a stroke limiter, thereby protecting internal components and extending the cylinder's service life
- Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
- High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications
- Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
- Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
- Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance
Specifications
- Model: HHYG-30100LS
- Lifting Capacity: 30tonne
- Stroke: 100mm
- Open Height: 306mm
- Closed Height: 206mm
- Outer Diameter: 103mm
- Oil Capacity: 475cc
- Maximum Working Pressure: 700 Bar (10,000 PSI)
- Weight: 12.7kg
Recommended Accessories
- Hydraulic Hand Pump: HHB-700
Applications
- Heavy machinery maintenance
- Construction and infrastructure lifting
- Steel erection and structural adjustment
- Mining equipment servicing
- Bridge support and leveling
- Steel structure alignment
