ActionRam HHP-1481 14tonne Hydraulic Wedge Spreader

More From This Brand

Add to New List

• Product Info

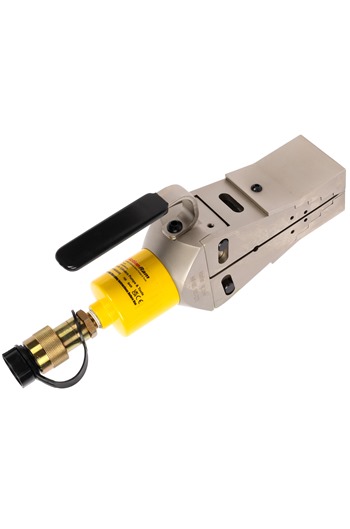

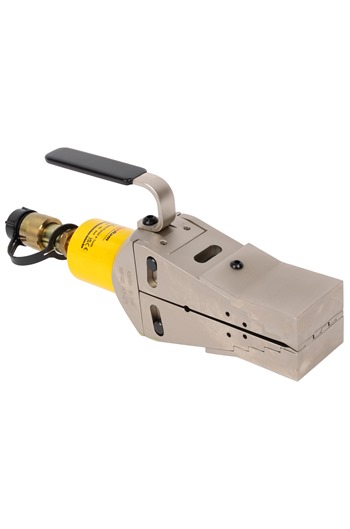

• ActionRam HHP-1481 Hydraulic Wedge Spreader

  Separation of stubborn joints for inspection and maintenance, particularly those fitted with ring grooves or those with external forces acting on them are often difficult to separate

  The use of hammers and wedges, chainblocks and lever bars can damage joint components and present a potential safety risk

  The HHP-1481 Hydraulic Wedge is the perfect solution

  Friction-free, smooth and parallel wedge movement with unique interlock wedge design eliminates flange damage and risk of spreading arm failure

  Requires very small access gap of 6mm

  Stepped spreader arm design - each step can spread under full load

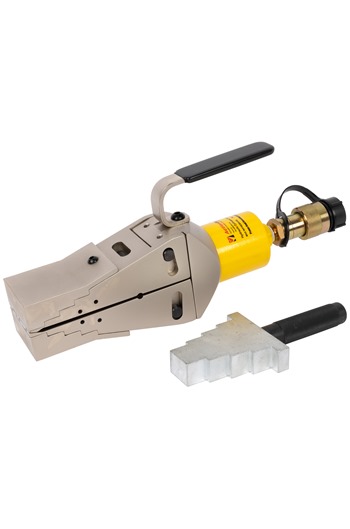

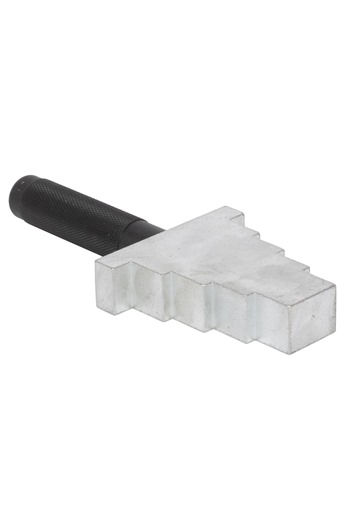

  Stepped blocks can be used to increase the wedge opening up to 81mm

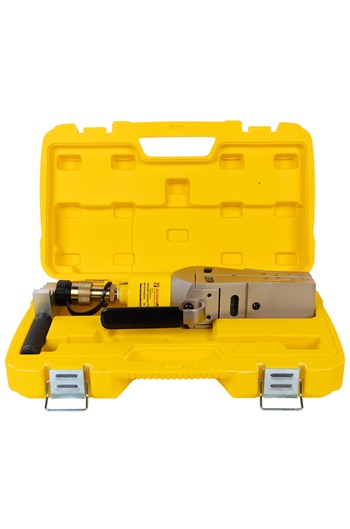

  Includes safety block and stepped blocks

  • Model: HHP-1481
  • Max spreading force: 14tonne
  • Tip clearence: 6mm
  • Max spread: 81mm
  • Oil capacity: 70cm³
  • Supplied with 3/8" NPT Female Coupler and dust cap
  • Weight: 10.2kg
• Specifications
• Additional Info
  Additional Information

  Instruction ManualData SheetDimensions
• Price Breaks
• ActionRam HHP-1481 14tonne Hydraulic Wedge Spreader (Net Weight Per Item: 10.20kg):

  Quantity:

  1+

  (£391.39 inc VAT)
