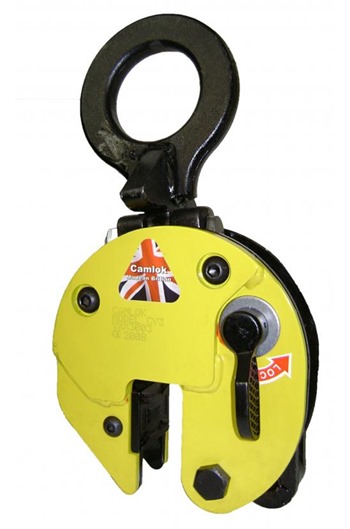

CAMLOK CY3 3000kg 'Hinged' Vertical Plate Clamp

CAMLOK CY3 3000kg 'HINGED' Vertical Plate Clamp

The CY Plate Clamps with hinged hook rings can be used for the safe handling of plate at various angles

It can lift plate from the horizontal and put it down in the vertical

The hinged hook ring ensures adequate gripping pressure in every position, but the load capacity reduces (see attached data sheet showing the load/force capacities)

The main benefit of the CY hinged Plate Clamps is that longer plate can be lifted or handled, using two Clamps on a two legged Chainsling, thus eliminating the need for a spreader beam

Model: CY3

WLL: 300-3000kg

Jaw capacity: 0-32mm

Weight: 14kg

Fully tested and certified

See attached data sheet for dimensions

MADE IN THE UK

FROM DATE OF ORDER
