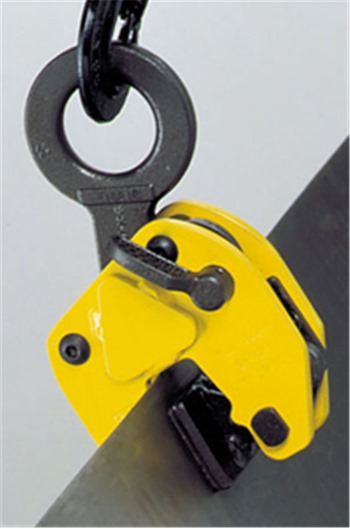

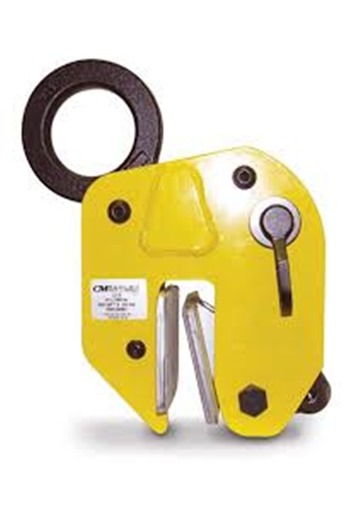

CAMLOK LJ 'NON-MARKING' Plate Clamps
Working load limit (WLL) 500kg or 1500kg
The LJ non-marking plate clamps are designed for lifting, turning and transporting of all structural steel plates, stainless steel, iron, timber and aluminium without marking, damaging or leaving indentations on the surface. It can also be used for plates with extremely hard surfaces
The LJ clamp can be used on thin plates. Minimum load will not affect the LJ clamps as they do not have teeth for bite. However some load is required to combat friction in the clamp. Extra care must be taken when lifting plates in the lower 20% of their rated capacity. Thin plates are best lifted with the fixed jaw on top when performing a horizontal to vertical lift
As standard these clamps come with leather lined pads and jaws, however there is also the option of having rubber or plastic pads fitted for use with polished materials. Contact our sales team for details
NB: The surface of the plate must be free of oil, grease or any other liquid to ensure safe transport
Fully tested and certified
MADE IN THE UK
DELIVERY IS 10-14 days FROM RECEIPT OF ORDER
