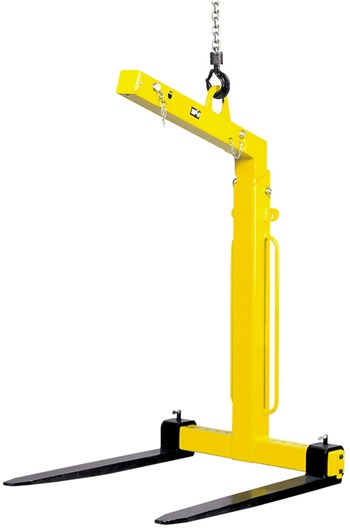

CAMLOK TKG3.0VHS 3000kg Self Weight Balance Crane Forks

CAMLOK TKG3.0VHS 3000kg Self Weight Balance Crane Forks

The TKG-VHS range of Crane Forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system

Crane Forks with self weight balancing tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines

The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down

For efficient operation of this mechanism the load be greater than 20% of the working load limit

• Factor of safety 4:1
• Maintenance free
• Highly visible safety colour
• For transporting rings or coils, simply push fork tines together
• Easily adjustable tines for all pallet sizes
• Supplied with chain for securing the load

Model: TKG3.0VHS

WLL: 600-3000kg

Adjustment of tines: 450-900mm

Useable height: 1300-2000mm

Length of tines: 1000mm

Section of tines: 120x50mm

Overall height: 1720-2420mm

Weight: 280kg
