CAMLOK TSZ 'Two Way' Screw Clamps 500kg to 7500kg

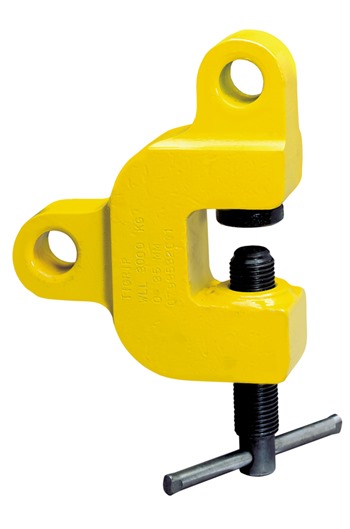

CAMLOK TSZ 'Two Way' Screw Clamps

The TSZ 'Two Way' Screw Clamp offers many possible uses, ideally suited for the construction industry

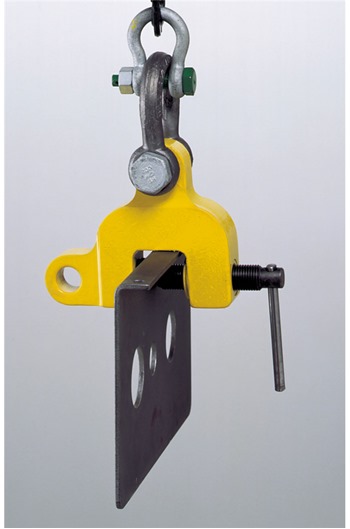

The unique design of the spindle makes it easy to attach to 'angle' plate.  This is achieved by simply turning the handle which applies the pressure to the plate holding it securely

Two lifting points enable it to be pulled in two different directions

Available in 500kg to 7500kg capacity

MODEL TSZ500

• WLL: 500kg
• Jaw capacity: 0-28mm
• Weight: 3kg

MODEL TSZ1500

• WLL: 1500kg
• Jaw capacity: 0-35mm
• Weight: 5kg

MODEL TSZ3000

• WLL: 3000kg
• Jaw capacity: 0-35mm
• Weight: 9kg

MODEL TSZ5000

• WLL: 5000kg
• Jaw capacity: 0-40mm
• Weight: 16kg

MODEL TSZ7500

• WLL: 7500kg
• Jaw capacity: 0-40mm
• Weight: 21kg

Please note price is per Clamp

NB - surface of material to be lifted must not exceed a hardness level of HRC 50/Brinell 480

Fully tested and certified

MADE IN THE UK

*** Shackles not included ***

DELIVERY IS 2-3 WEEKS FROM DATE OF ORDER
