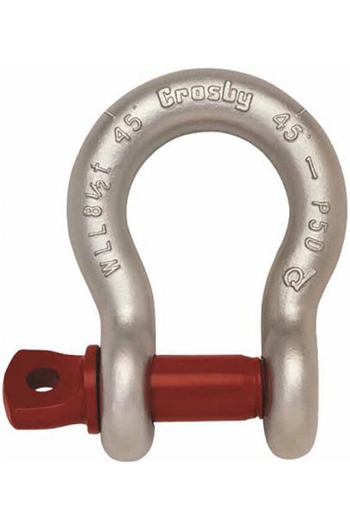

Crosby G-209 12ton Screw Pin Alloy Bow Shackle

Crosby G-209 12ton Screw Pin Alloy Bow Shackle

Grade 6 high tensile steel, quenched and tempered

G-209 Screw Pin Shackles meet the performance requirements of Federal Specifications RR-C-271F Type IVA, Grade A, Class 2 except for those provisions required of the contractor

Hot dipped Galvanised

Working load limit and grade "6" permanently shown on every Shackle

Look for the Red Pin.....the mark of genuine Crosby quality

Part number: 1018570

WLL: 12ton

Pin diameter: 35.1mm

Jaw width: 51.5mm

Internal length: 119mm

Weight: 4.31kg

Fully certified
