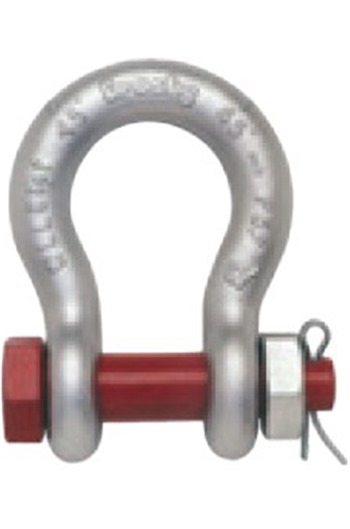

Crosby G-2130OC 4.75ton Safety Pin Alloy Bow Shackle

More From This Brand

Add to New List

• Product Info

• Crosby G-2130OC 4.75ton Safety Pin Alloy Bow Shackle

  Bolt type Anchor Shackle with thin head bolt - nut with cotter pin

  Grade 6 high tensile steel, quenched and tempered

  G-209 Screw Pin Shackles meet the performance requirements of Federal Specifications RR-C-271F Type IVA, Grade A, Class 3 except for those provisions required of the contractor

  Hot dipped Galvanised

  Working load limit and grade "6" permanently shown on every Shackle

  Look for the Red Pin.....the mark of genuine Crosby quality

  Part number: 1262022

  WLL: 4.75ton

  Pin diameter: 22.6mm

  Jaw width: 31.8mm

  Internal length: 71.4mm

  Weight: 1.23kg

  Fully certified

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Crosby G-2130OC 4.75ton Safety Pin Alloy Bow Shackle (Net Weight Per Item: 1.23kg):

  Quantity:

  1 - 9

  (£23.23 inc VAT)

  Quantity:

  10 - 19

  (£22.77 inc VAT)

  Quantity:

  20 - 29

  (£22.49 inc VAT)

  Quantity:

  30 - 49

  (£22.19 inc VAT)

  Quantity:

  50+

  (£21.95 inc VAT)
