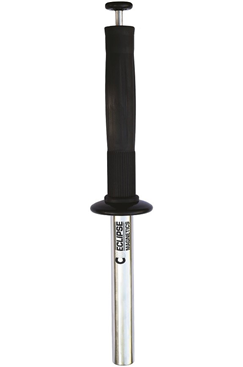

Eclipse Magnetics 400mm Magnetic Pick-up Wand

Eclipse Magnetics 400mm Magnetic Pick-up Wand

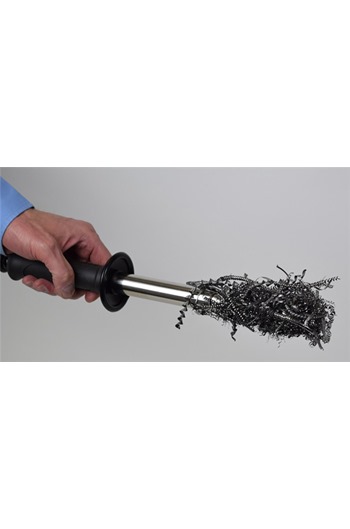

This Magnetic Pick-Up Wand is fantastic for use in the collection of very small ferrous debris such as iron or steel offcuts, chips and general swarf. They are also used to check for ferrous content in fluids, powders, etc

Made with a stainless steel casing allowing it to be very durable and non-rusting. It also features a quick release handle making dropping off the collected parts fast, easy and low-risk

The Magnetic Pick-Up Wand is sometimes called a Magnetic Swarf Wand - it is great at picking up ferrous swarf, iron filings, and any chips/offcuts that are ferrous. They can also be used to check if powders or fluids contain any ferrous parts (please note that we manufacture dedicated Magnetic Sampling Probes using Food grade stainless steel for detecting ferrous contamination in Food and Pharmaceutical applications which are also used in higher performance requirement Industrial fluid applications). Up to 6.35kg (14lb) of ferrous contamination could be collected (depending on the magnetic properties of the material and its size/shape)

The Wand has a quick-release handle to allow for a safe deposit of the collected ferrous parts into e.g. bin or tray. There is a plastic ring to protect the hand and to aid in the release of material. The 25.4mm (1 inch) diameter allows the Magnetic Pick-Up Wand to be lightweight. Two versions exist in this range - the longer version allows a longer reach to be achieved to collect the ferrous contamination e.g. from the bottom of a deep container

The amount of material that can be collected will depend on the type of material (how magnetic it is), its size and shape

Benefits:-

• Collects ferrous offcuts, fillings, chips, swarf, etc...
• No need to touch the ferrous parts due to quick release handle
• Stainless steel casing allows for durability and corrosion resistance
• Lightweight

Model: MW400

Diameter: 25.4mm

Length (capture position): 395mm

Length (cleaning position): 615mm

Pull force: 6.35kg

Weight: 0.6kg
