EGRS 7.5tonne Remote Ground Release Lifting Shackle 250mm Throat Depth
This robust pile lifting shackle was contractor designed and developed over many years of site use and abuse. The use of these shackles compliments the “Feet on the Ground” approach to piling
When used in conjunction with the Sheet Pile Threader, there is no need for site operatives to go above the safety of top frame level for interlocking sheet piles or releasing the lifting shackles. The shackles are suitable for lifting all steel piles up to 28mm thick and within the safe working load of the shackle. The shackle is stiffened to resist spreading of the forks when lifting at 90° to the axis of the pile. (See “Safety Check List”). When lifting sheet piles in pairs or individual piles weighing more than the Safe Working Load of the shackle, it is necessary to use multiple shackles in order to keep within the safe working load
Pairs of shackles can be supplied mounted on a two legged steel wire rope sling. The advantage being that the standard pair of shackles with lifting sling can be fitted to any pair of Larssen ‘U’ piles, Frodingham ‘Z’ piles, pipe or box piles. No additional parts or change of components is necessary
The ring at the top of the sling can be hooked directly onto a standard crane hook block, ‘D’ shackle or fork anchor. Shackles can also be fitted onto a solid steel cross head according to customers requirements
Part number: 5986A/A
Capacity: 7.5tonne
Throat depth: 250mm
Weight: 21.5kg

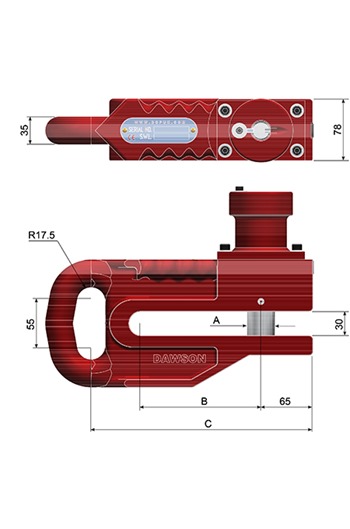

*** See attached Instruction manual for full dimensions ***
Features:-
- Ground Release Mechanism
- Robust high strength cast steel body
- Pin mechanism concealed for maximum protection
- Pin mechanism easily detachable for maintenance
- Can be used for lifting columns, pipe piles, sheet piles & steel fabrications
- Heavy web stiffening to withstand side lift (i.e. 90° to the axis) imposed when lifting from the horizontal
- Independently proof load tested to twice Safe Working Load. (Test certificates supplied)
- Super safe pin design which avoids accidental release
- Indicator bar to give clear visual indication that plunger has engaged pile lifting hole completely
- Positive pin release at the proper time
- Shackle throat depth available in two sizes: 150mm (6”) or 250mm (10”) to suit all usual lifting hole positions
