Fork Mounted Gas Bottle Carrier - Multi Bottle

More From This Brand

Add to New List

• Product Info

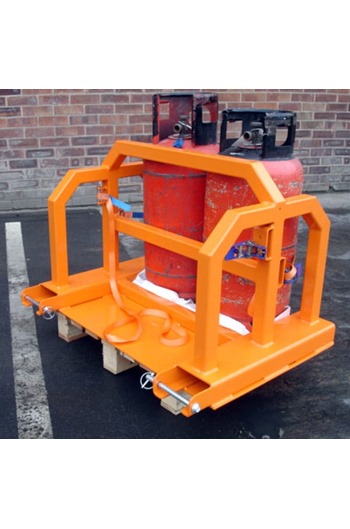

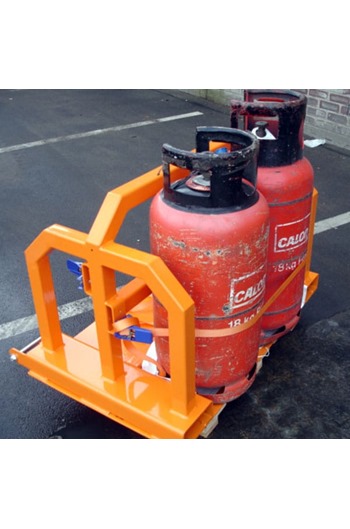

• Our Fork Mounted Multi-Cylinder Gas Bottle Handler has been designed to facilitate the safe movement of various Gas Bottles of differing diameters and weights

  Securely fitted to the forklift truck via heel pin retention and with very low loading height to mitigate manual handling

  All bottles are restrained in place by a ratchet strap each side

  Operation:-

  Bottle type: Butane

  • 4.5KG = 240mm Dia
  • 6KG = 306mm Dia
  • 7KG = 256mm Dia
  • 15KG = 318mm Dia

  Bottle type: Propane

  • 3.9KG = 240mm Dia
  • 5KG = 306mm Dia
  • 6KG = 256mm Dia
  • 13KG = 318mm Dia
  • 19KG = 318mm Dia

  Standard features:-

  • Robust and Sturdy Construction
  • Low Loading Height
  • 2 Off Webbing Ratchet Straps for safe securing of bottles
  • Maximum fork section 150 x 60 at 800mm centres
  • Zinc Plated Heel Pins for safe attachment to the truck
  • Painted Bright Orange for safety

  Specifications:-

  • Model: IGBH-MULTI
  • Capacity: 500kg
  • Load space (each side): 650 x 275mm
  • Weight: 73kg
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Fork Mounted Gas Bottle Carrier - Multi Bottle (Net Weight Per Item: 73.00kg):

  Quantity:

  1+

  (£1,376.70 inc VAT)
