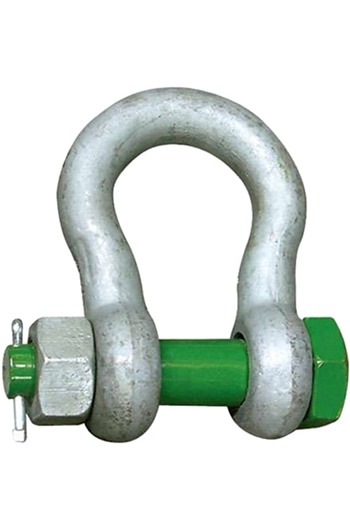

Green Pin® Shackles - Safety Pin Alloy Bow Shackle

More From This Brand

Add to New List

• Product Info

• The Green Pin® Bow Shackle BN is an alloy bow shackle with a safety bolt. A split pin and safety bolt makes it doubly safe as it prevents the pin from being accidentally unscrewed. This product is suitable for one-leg systems and multi-leg systems.

  Green Pin® shackles are galvanised making them ultra durable. This product also conforms to all the important certifications from class societies, including DNV GL.



  The Green Pin® Bow Shackle BN - Product Specifications:

  • Grade 6 high tensile steel, quenched and tempered

  • Minimum breaking load is 6 times the WLL (Working Load Limit)

  • Conforms to EN13889 & meets the performance of US Fed Spec RC-C-271 Type IVA class 2, Grade A

  • Hot dipped galvanised

  • Nut and Bolt safety pin

  • WLL: 13.5ton

  • Pin diameter: 38mm

  • Jaw width: 57mm

  • Internal length: 133mm

  • Fully certified
• Specifications
• Additional Info
  Additional Information

  Specifications
• Price Breaks
• Green Pin 13.5ton Alloy Bow Shackle Safety Pin (Net Weight Per Item: 6.54kg):

  Quantity:

  1+

  (£72.42 inc VAT)
