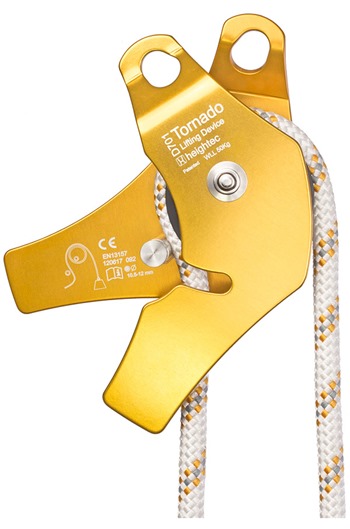

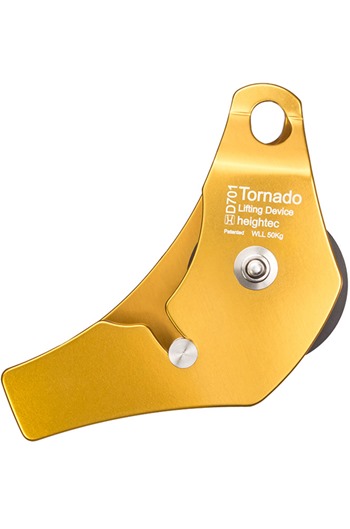

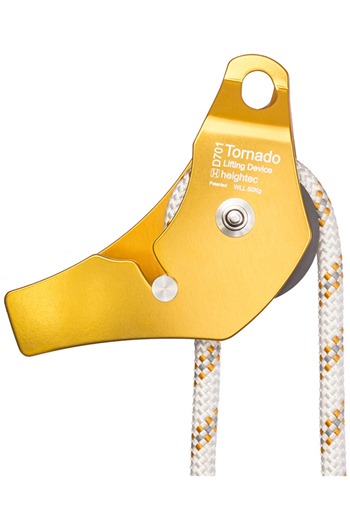

Heightec D701 TORNADO Lifting & Lowering Device

Heightec D701 TORNADO Lifting & Lowering Device

For controlled lifting and lowering of light or medium loads

The TORNADO is a lifting & lowering device with a locking cam for use on kernmantle rope

The one way bearing in the main cam allows it to rotate freely when lifting but lock when lowering

Functions as a pulley when lifting for minimum friction and provides friction for controlled lowering

Controlled lifting is a widespread activity in all work at height and rescue

With its smooth running one way bearing, the TORNADO lifting and lowering device is a light and versatile addition to any lifting system

Operation of this device is simple – pull the tail end of rope to lift, raise the body of the device to lower

The rope can be installed while the device is connected to the anchor point to reduce the risk of dropping

Uses:-

• Raising loads
• Lowering loads
• Positioning loads
• Backing up ‘endless loop’ hand hauling systems
• Can also be used in compound pulley systems to increase mechanical advantage.

Designed for loads up to 50 kg

All lifting products are marked with working load limits and certified

Features:-

• One way sealed bearing system
• Controlled lifting and lowering
• Backing up 'endless loop'
• Anodised aluminium construction
• Locks when released

Specifications-

• Sizing: 10.5-12mm rope
• Material: Stainless steel, nylon, aluminium
• EN Mass Test: 50kg
• Loading: 50kg SWL
• Weight: 0.652kg
• Conformity: CE EN 13157
