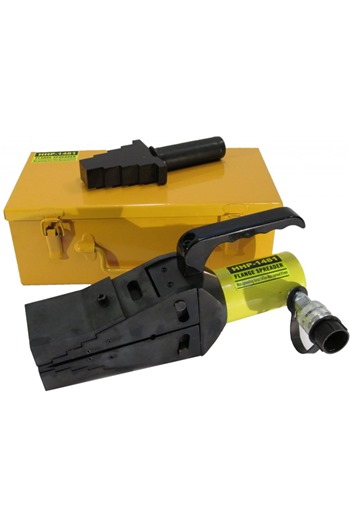

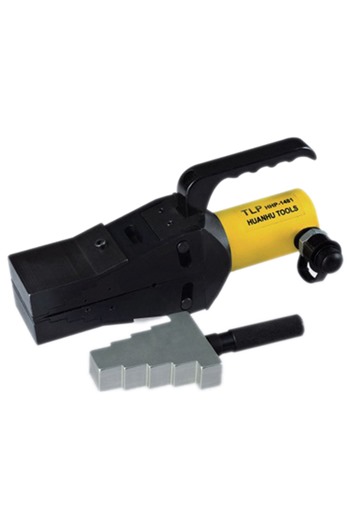

ActionRam HHP-1481 14tonne Hydraulic Wedge Spreader

More From This Brand

Add to New List

• Product Info

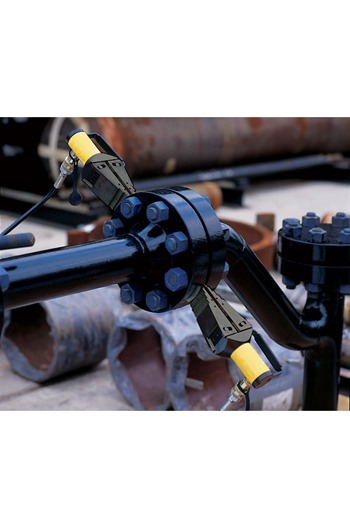

• Separating stubborn or seized joints for inspection and maintenance can be a challenging and potentially hazardous task, particularly where joints are fitted with ring grooves or subjected to external loads and forces. Traditional methods such as hammers, wedges, chain blocks, or lever bars often require excessive manual effort and can lead to damage of joint components, misalignment, or uncontrolled release of stored energy, creating significant safety risks for personnel

  The ActionRam HHP-1481 Hydraulic Wedge Spreader provides a safe, controlled, and highly effective solution for joint separation applications. Designed for precision and reliability, this hydraulic wedge eliminates the need for impact tools and excessive force, greatly reducing the risk of damage and injury

  Featuring a unique interlocking wedge design, the HHP-1481 delivers friction-free, smooth, and parallel wedge movement throughout the spreading operation. This advanced design prevents flange damage and eliminates the risk of spreading arm failure, even under full load. The wedge requires an exceptionally small access gap of just 6mm, making it ideal for tight or confined applications where conventional tools cannot be used

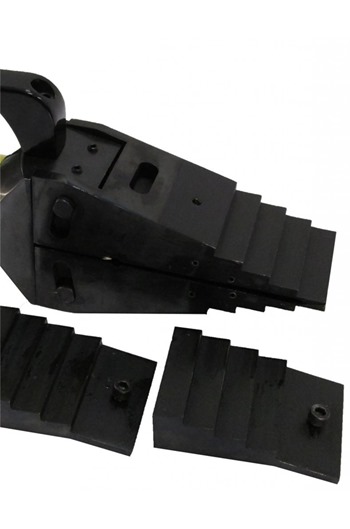

  The stepped spreader arm design allows each step to operate under full rated load, ensuring consistent performance and controlled separation. When additional opening is required, the supplied stepped blocks can be used to increase the spreading range up to 81mm, offering excellent versatility across a wide range of maintenance and industrial applications

  Specifications

  ---

  • Model: HHP-1481
  • Maximum Spreading Force: 14 tonne
  • Tip Clearance: 6 mm
  • Maximum Spread: 81 mm
  • Oil Capacity: 70 cm³
  • Hydraulic Connection: 3/8" NPT Female Coupler with dust cap
  • Weight: 10.2 kg
• Specifications
• BrandActionRam

  Product Weight10.2kg

  Product ColourBlack & Yellow

  W.L.L.14tonne

  Maximum Operating Pressure 700bar

  Open Height 81mm

  Supplied With R2 3/8 Male Coupler and Dust Cap

  Available for HireYes

  Warranty12 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No
  Additional Info
  Additional Information

  Instruction ManualData SheetDimensions
• Price Breaks
• ActionRam HHP-1481 14tonne Hydraulic Wedge Spreader (Net Weight Per Item: 10.35kg):

  Quantity:

  1+

  (£405.20 inc VAT)
