Hi-Force 4-way Controlled Manifold c/w 2mtr Hoses

Hi-Force 4-way Controlled Manifold c/w 2mtr Hoses

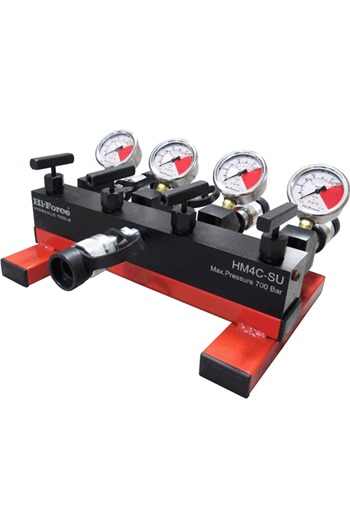

4-way controlled Manifold unit designed specifically to allow easy control of the direction of flow of the hydraulic fluid within a single acting system

The Manifold unit is mounted on a sturdy framework and fitted with a 0-700bar pressure gauge on each outlet port

Quick connect couplings fitted as standard to all inlet and outlet ports

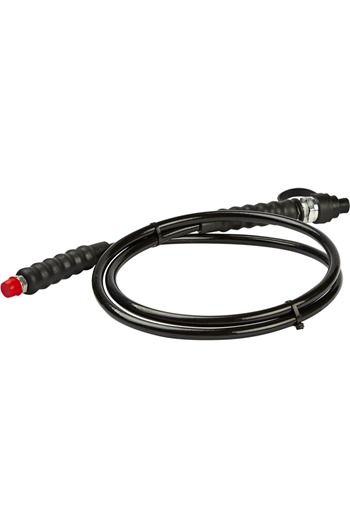

Supplied with 4x 2mtr high pressure hoses fitted with male couplers each end for quick and easy fitting to Manifold

Precise control of oil flow and pressure within the hydraulic system

Model: HM4C-SU

Width: 350mm

Height: 51mm

Depth: 51mm

Port centres: 100mm

Weight: 7.9kg

Please contact us for discount on this product
