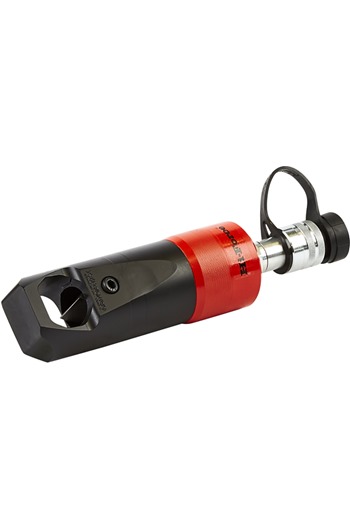

Hi-Force NS200 Hydraulic Nut Splitter 41-50mm

Hi-Force NS200 41-50mm Hydraulic Nut Splitter

Single acting, spring assisted return

Angled body design for increased clearance on flanges and flat surfaces

High quality steel construction

Suitable for splitting nuts up to RC44 hardness

Designed to fit on all API and ANSI flanges

Offers ideal ‘cold cut’ solution for applications where ‘hot work’ permits are not allowed

Steel linkage keeps blade cutting edge parallel to the nut throughout the splitting process

Compact and easy to use

Model: NS200

Capacity: 41.2tonne

Oil capacity: 122cm³

Hexagon AF size: 41-50mm

Stud bolt thread size: M27-M33

Weight: 10.6kg

Note: NS nut splitters are for use on heavy duty nuts, where the nut height is equal to or greater than two-thirds of the blade length of the tool being used
