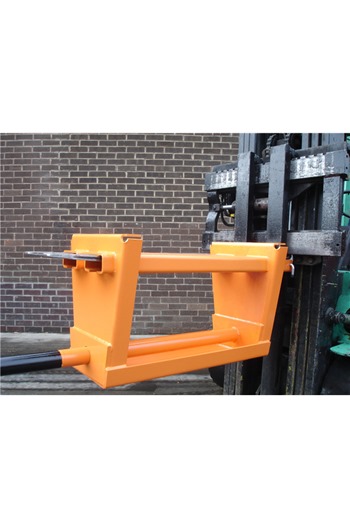

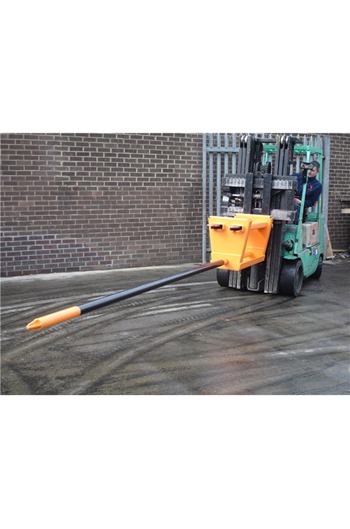

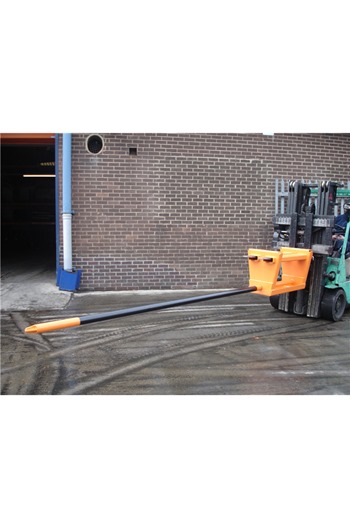

IFB-1 500kg x 3000mm Fork Mounted Pole

IFB-1 500kg x 3000mm Fork Mounted Pole

As with the Carriage Mounted Pole the Fork Mounted Pole is capable of lifting a variety of coiled products, but is usually used in low volume/occasion usage environment with a mixed pallet/coiled product application

Standard features:-

• High tensile machined pole with tapered tip to ease location into coiled product
• Free standing for ease of location
• Smooth surface finish to protect the intended load to be lifted

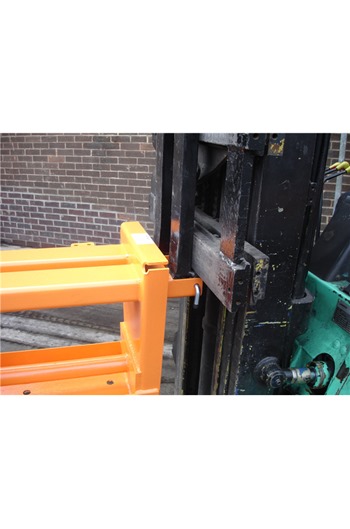

• Zinc plated heel pins for safe attachment to the truck
• Maximum fork section 125x50mm at 230 centres
• Painted bright orange for safety

Model: IFB-1

Boom diameter: 70mm

Effective length: 3000mm

Capacity: 500kg

Load centre: 2000mm

C of G: 790mm

LLC: 950mm

Weight: 210kg
