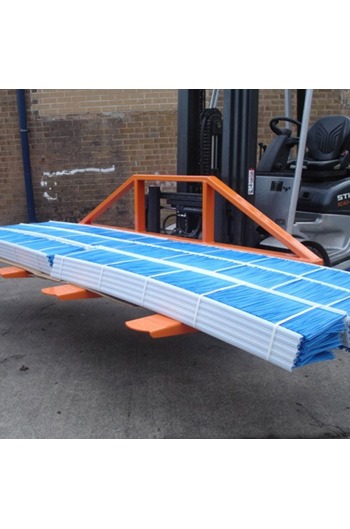

Designed to provide a method of lifting and moving unpalletised loads such as timber planks, sheet steel and tubing, plastic pipes and concrete lintels safely and in turn minimizing the potential of damaging the product
Operation:-
- Position the forks to the correct distance apart to locate into fork pockets
- Remove the heel pins from the attachment
- Drive the forks into the fork pockets
- Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into hole
- The attachment is now ready for use
Standard features:-
- Inner fork pocket positioned to suit site application (advise on placement of order otherwise set at 683crs as standard)
- Smooth profiled fork pockets to ensure product care
- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety
Specifications:-

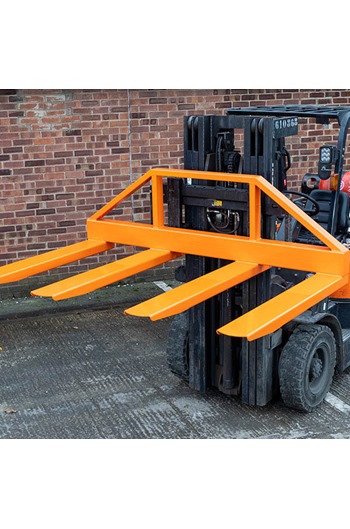

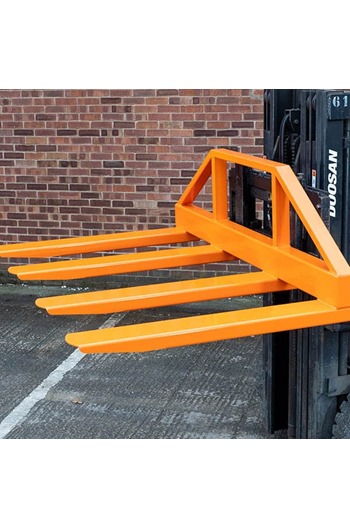

- Model: IFF-1
- Attachment width: 1500mm
- Pocket length: 1200mm
- Max fork: 150x50mm
- Capacity (kg at 600lc): 1500kg
- Weight: 140kg
