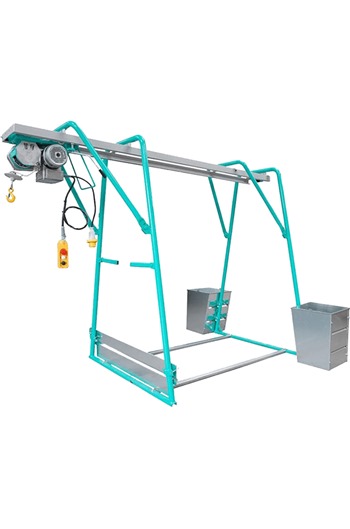

IMER 500kg 110volt Builders Gantry HoistIMER 500kg 110volt Builders Gantry Hoist

IMER 500kg 110volt Builders Gantry Hoist

Product Code: IMER-BGH-G500
  • Product Info
  • IMER 500kg 110volt Builders Gantry Hoist

    This 500Kg has a 42m height of lift which is designed to be used within scaffolding or on a flat room where there is no scaffold to attach a lifting hoist to

    It has a running beam 3.3m long and allows an overhang of 1m beyond the edge of the safety board to enable material to be maneuvered along the hoist runway safely and without effort

    It is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely

    It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely

    The hook has a spring loaded safety catch to keep the load carrier within the hook

    The Hoist also has a Brake to control the travel along its runway and Rubber stops at each end of the travel

    To comply with lifting regulations it comes complete with a front kickboard and lockable back ballast boxes (250Kg in each box required NOT SUPPLIED)

    Included with ‘Complete System’:-

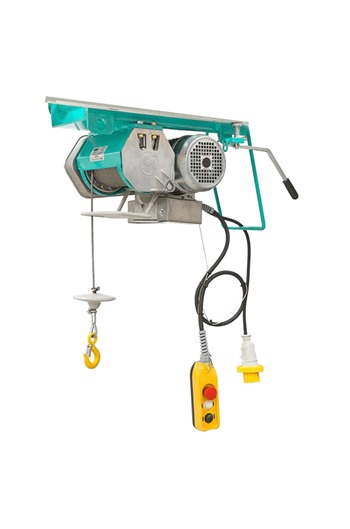

    • G500 Hoist
    • G500 Pendant
    • Beam Trolley
    • Gantry
    • A-Frame
    • Kick Plate
    • Ballast Boxes
    • IP65 plug
    • Hook with block and wedge
    • Hoist trolley with 4 aluminium wheels
    • Upper limit safety device
    • Hoist trolley positioning brake
    • Self-braking motor with brake rectifier
    • Lockable ballast boxes

    Hoist details:-

    • Maximum capacity: 500kg
    • Average full load lifting speed: 17mtrs/min
    • 110v/50Hz
    • Max working height: 42mtr
    • Hoist weight: 50kg


  • Price Breaks
  • IMER 500kg 110volt Builders Gantry Hoist (Net Weight Per Item: 250.00kg):
    (£3,599.98 inc VAT)

  Exclusive Web Only Price!

£5,183.97£4,319.98 (ex VAT)
(£2,999.98 ex VAT)
£3,869.97 Each inc VAT
(£3,224.98 ex VAT)
