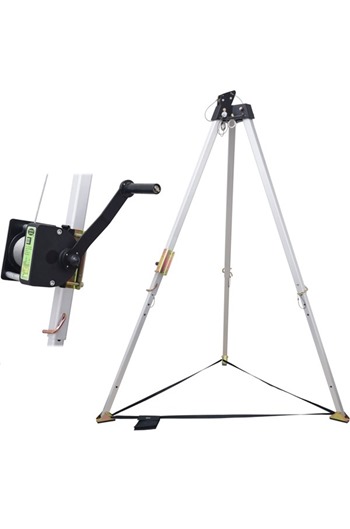

Kratos Safety 7ft Rescue Tripod & 20mtr Winch Kit

More From This Brand

Add to New List

• Product Info

• Kratos 7ft Rescue Tripod & 20mtr Winch Kit

  This Tripod and Winch Kit comprises of the following items:-

  Kratos FA6000100 7ft Rescue Tripod

  For access in confined spaces

  Adjustable height: 1.15mtr to 2.15mtr

  Wheelbase: 1.08mtr to 1.62mtr

  Maximum Load Capacity: 500kg under head / 250kg on leg

  Weight: 14.3kg

  Conforms to: EN795:2012 type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808

  Features:-

  • Two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable
  • Two auxiliary eye bolts as attachment points
  • Aluminum alloy cast head, legs in aluminium
  • Steel support-shoes provided with rubber sole to increase friction and impart more stability
  • Strength of anchorage point greater than 12 kN
  • Tripod is provided with inbuilt fixture for attaching Kratos winches FA6000320, FA6000330, FA6002320, FA6002320R
  • Supplied with tripod bag

  Kratos FA6000320 20mtr Rescue and Work Winch

  Rescue and work winch to suit the Kratos Tripod & MultiSafeWay

  To be used for raising or lowering of personnel or material into confined spaces

  Equipped with bolting fixture for robust fitting on to the Tripod

  Length: 20mtrs

  Safe working load (as per EN1496): 135kg

  Maximum working load (as per Machinery Directive): 250kg

  Minimum working load: 60kg

  Galvanised cable diameter: 4.8mm

  Conforms to: Machinery Directive 2006/42/EC, EN1496:2017 Class A, EN13157:2004, ATEX Directive 2014/34/EU

• Specifications
• BrandKratos Safety

  Conforms to EN StandardEN 1496 & EN 795:2012

  Country of OriginFrance

  Certification SuppliedATEX Directive 2014/34/EU & Machinery Directive 2006/42/EC

  Effective Working Length (EWL)20mtrs for Winch

  Product MaterialGalvanised Steel Cable & Aluminium Alloy

  Product ColourMetallic Silver

  Product Weight14.30kg

  WidthWinch - 4.8mm

  W.L.L.Rescue Tripod - 500kg Under Head

  W.L.L.Winch - 250kg

  Safe Working Load (S.W.L)Winch - 135kg
  Additional Info
  Additional Information

  Tripod Instruction ManualTripod Data SheetWinch Data Sheet
