PETZL D022AA00 Zigzag Mechanical Prusik

PETZL D022AA00 Zigzag Mechanical Prusik

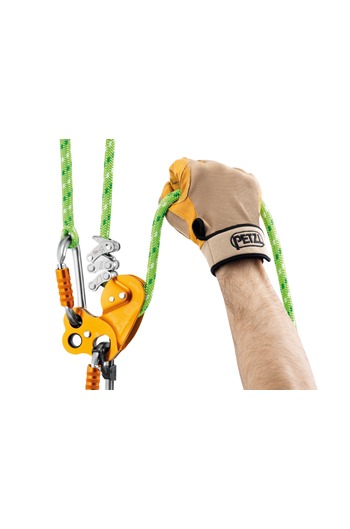

The ZIGZAG mechanical Prusik allows the user to move around efficiently in a tree using classic Prusik pulley system technique

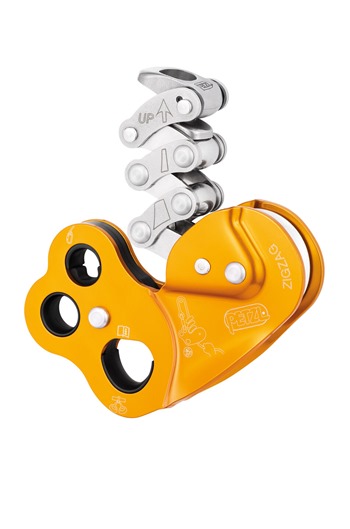

The friction chain provides precision and fluidity when moving around

The pulley is mounted on sealed ball bearings to allow the slack to be taken up easily

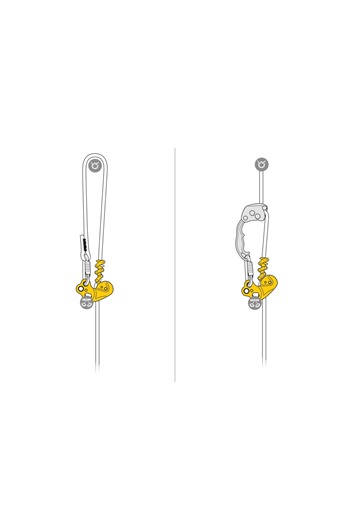

Can be used on either doubled ropes or a single rope, providing great versatility

The lower attachment hole is fixed to ensure alignment of the device with the axis of the worker and to optimize grip

Intuitive to use:-

• Technique identical to classic Prusik pulley system
• The device locks automatically on the rope once the friction chain extends

For efficient movement within the tree:-

• Rope feed is smooth and precise thanks to the release lever, allowing the user great control over his/her movements. Adjusting the pressure on this lever controls the speed of movement
• Easy to take up slack, thanks to the pulley mounted on sealed ball bearings and the separated and curved side plates
• Lower attachment hole is fixed to ensure alignment of the device with the axis of the worker and optimize grip

Versatile:-

• For use on either doubled ropes or a single rope, thanks to the CHICANE accessory, which offers more friction on the descent, and the KNEE ASCENT assemblies, which facilitate the ascent

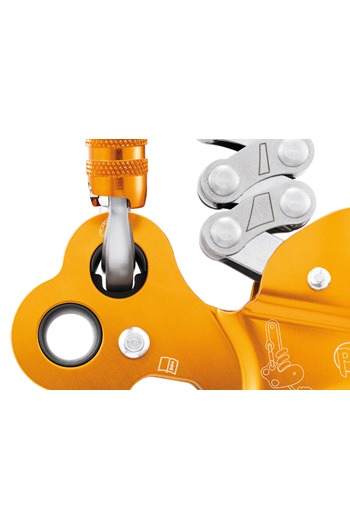

• Upper attachment hole for the rope end when using a doubled rope or for the CHICANE auxiliary braking device when using a single rope. It has a flexible positioning ring that helps keep the connector oriented along its major axis
• Auxiliary attachment hole for adding a ZILLON lanyard or connecting a second system

Durability:-

• Steel construction for improved durability

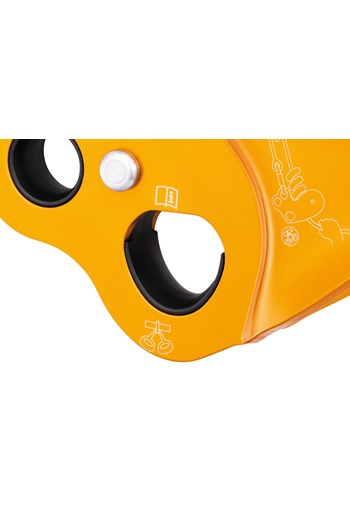

• Separated and curved side plates for better wear resistance

Rope compatibility: 11.5 to 13 mm diameter

ZIGZAG allows the user to work in compliance with the ANSI Z133 standard

Specifications:-

• Material(s): aluminum, steel, nylon
• Weight: 365 g
• Rope compatibility: EN 1891 type A low stretch kernmantel ropes
• Working load limit: 140 kg
• Certification(s): CE
