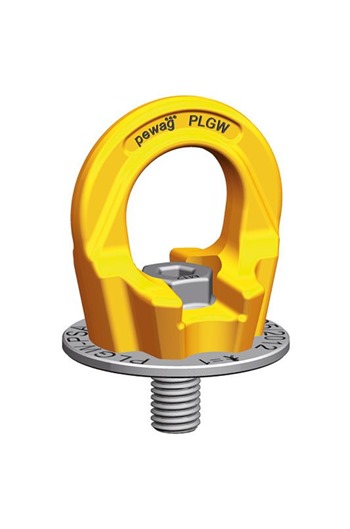

Pewag PLGW-PSA Basic Fall Arrest Eyebolt Anchors - M12, M16, M20

Pewag PLGW-PSA Basic Fall Arrest Eyebolt Anchors

The Pewag PLGW-PSA fall arrest eyebolt is the point of the anchorage system on which personal fall protection equipment can be fastened. It was designed and certified as per the high safety requirements for personal protective equipment according to the Regulation (EU) 2016/425; and meets the new EN795:2012 (1 person) and CEN/TS 16415 (2 persons) directives respectively. PLGW-PSA anchor points also conform to the requirements of BS8610:2017

The PLGW-PSA Basic is intended for permanent assembly to the anchorage system (e.g. tripod) and is mounted using a commercial Allen key

The special finish using the colour RAL 1003 for both versions is approved for use with stationary antenna systems ("cell phone towers")

The Pewag PLGW-PSA anchorage point is available in the sizes M12 (for 1 person) as well as M16 and M20 (for max. 2 persons)

Every anchorage point is marked with the thread size and the permitted number of persons. The individual serial number enables complete traceability on all compulsory inspections
