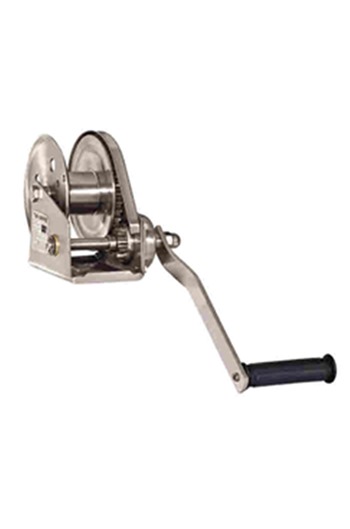

Pfaff HW-CS Stainless Steel 800daN Hand Winch

More From This Brand

Add to New List

• Product Info

• PFAFF SILBERBLAU HW-CS STAINLESS STEEL HAND WINCH

  Stainless Steel, spur gear drive, manual Wire Rope Winch

  Capacity: 800daN

  Features and benefits include:-

  • Winch housing and rope drum are made from Stainless Steel.  The plain drum bearings are made from bronze for additional corrosion resistance
  • Rope drum on bush bearings for flawless rope lead-off
  • Spur gear drive for optimal efficiency
  • Compact design
  • Easy and quick mounting onto walls, poles, towers etc...
  • Pivotable handle
  • Automatic load pressure brake for safe holding and extremely sensitive lowering of the load.  Unintentional brake release is prevented even with swinging loads
  • Suitable for operation in ambient temperatures of -10 to +50 degrees
  • Capacity: 800 daN
  • Crank effort 1st rope layer: 20 daN
  • Ratio: 10:1
  • Recommended rope diameter: 8mm
  • Wire rope storage max: 15mtrs
  • Number of rope layers max: 7
  • Weight (without rope): 10.1kg

  Applications:

  The wire rope winches are suitable for use in areas where electricity is not available or where electric appliances can not be operated such as water, mud or dirt.

  Stainless Steel Version:

  The HW-CS has the same features per the HW-C but with even more protection against the elements faced when using outdoors. The HW-CS winch housing and rope drum are made from stainless steel and the plain drum bearings are made from bronze for additional corrosion resistance.

  Please note: These Winches are supplied WITHOUT Wire Rope (please contact us for details of Wire Ropes we can offer)



• Price Breaks
• Pfaff HW-CS Stainless Steel 800daN Hand Winch (Net Weight Per Item: 10.10kg):

  Quantity:

  1+

  (£458.34 inc VAT)
