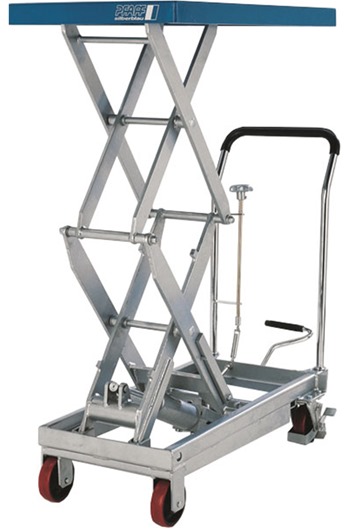

Pfaff HXD350 350kg Double Action Scissor Lift Platform Table

More From This Brand

Add to New List

• Product Info

• Pfaff HXD350 350kg Double Action Scissor Lift Platform Table

  The Pfaff HX300 is a Hydraulic Workshop Platform with adjustable height, suitable for all manufacturing, packing and workshop applications

  Hydraulic foot pump lifts the Table with minimal effort

  Lowering action is via a release cable, this safely lowers the load

  The lockable wheel feature adds stability and safety to the Platform Table

  Robust construction with hard chromium plated piston and pressure relief valve

  Model: HXD350

  Lifting capacity: 350kg

  Rollers: Polyurethane

  Overall unit height: 965mm

  Overall unit length: 1140mm

  Max height of platform: 1300mm

  Min height of platform: 370mm

  Platform length: 910mm

  Platform width: 500mm

  Floor/ground clearance: 31mm

  Lift height per stroke: 21mm

  Weight: 136kgs



• Specifications
• BrandPFAFF

  Product Weight136kg

  Product ColourSilver & Navy

  Material.

  Maximum Lift Height1300mm

  Lift Range930mm

  Closed Height370mm

  Ground Clearance31mm

  Handle Height.

  Overall Height965mm

  Overall Length1140mm

  Overall Width500mm

  Platform Length910mm

  Platform Width500mm

  Platform Thickness.

  W.L.L.350kg

  OperationManual

  Foot Pedal Cycle to Maximum Lift.

  Lift Height per Pedal Cycle21mm

  Lift Time.

  Lowering Time.

  Wheel Material Polyurethane

  Wheel Type.

  Wheel Diameter128mm

  Wheel Width40mm

  Available for HireNo

  CE / UKCA Marked.

  Conforms to EN StandardEN 1570 & EN 1757-4

  Certification Supplied.

  Inspection Period (From date of first use).

  Warranty.

  Custom Made ProductNo

  Included in Return Policy No

  Third Party Supplied Yes
