Reid 500kg Shackled T-Davit Radius 1050mm

More From This Brand

Add to New List

• Product Info

• Reid 500kg Shackled T-Davit Radius 1050mm

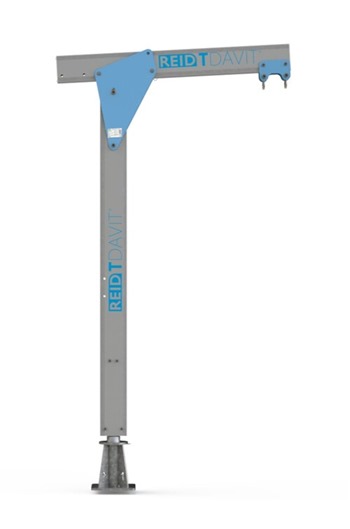

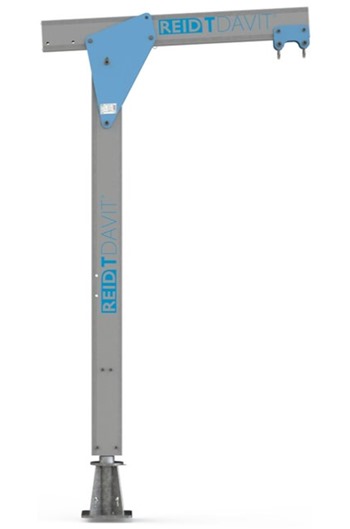

  The T-Davit is a lightweight and portable aluminium Davit system with a lifting capacity of 500kg and 360° rotation under a full load

  Manual or electric Chain Hoists can be hooked from the shackles on the head of the T-Davit beam

  Supplied with STMG0500V2 GMS (galvanised mild steel) Top Mount Socket (other Sockets available - please contact us for details)

  Radius position A: 1050mm (beam option 2)

  Radius position B: 960mm (beam option 2)

  Available with five different column options (please see attached data sheet for dimensions)

  Two piece aluminium Davit

  Twin shackle lifting points

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• 500kg Shackled T-Davit Height of Lift: 1092/1480mm c/w Top Mount Socket (Net Weight Per Item: 45.00kg):

  Quantity:

  1+

  (£2,547.94 inc VAT)
  500kg Shackled T-Davit Height of Lift: 1402/1790mm c/w Top Mount Socket (Net Weight Per Item: 47.00kg):

  Quantity:

  1+

  (£2,633.27 inc VAT)
  500kg Shackled T-Davit Height of Lift: 1717/2105mm c/w Top Mount Socket (Net Weight Per Item: 49.00kg):

  Quantity:

  1+

  (£2,701.28 inc VAT)
  500kg Shackled T-Davit Height of Lift: 2027/2415mm c/w Top Mount Socket (Net Weight Per Item: 53.00kg):

  Quantity:

  1+

  (£2,633.62 inc VAT)
  500kg Shackled T-Davit Height of Lift: 912/1300mm c/w Top Mount Socket (Net Weight Per Item: 44.00kg):

  Quantity:

  1+

  (£2,434.99 inc VAT)
