Reid 500kg Shackled T-Davit Radius 850mm

More From This Brand

Add to New List

• Product Info

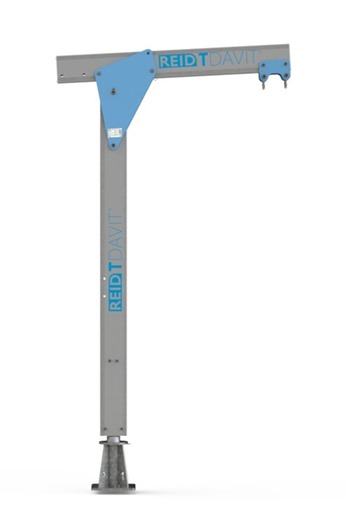

• Reid 500kg Shackled T-Davit Radius 850/775mm

  The T-Davit is a lightweight and portable aluminium Davit system with a lifting capacity of 500kg and 360° rotation under a full load

  Manual or electric Chain Hoists can be hooked from the shackles on the head of the T-Davit beam

  Supplied with STMG0500V2 GMS (galvanised mild steel) Top Mount Socket (other Sockets available - please contact us for details)

  Radius position A: 850mm (beam option 1)

  Radius position B: 775mm (beam option 1)

  Available with five different column options (please see attached data sheet for dimensions)

  Two piece aluminium Davit

  Twin shackle lifting points

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• 500kg Shackled T-Davit Height of Lift: 1092/1404mm c/w Top Mount Socket (Net Weight Per Item: 44.00kg):

  Quantity:

  1+

  (£2,431.66 inc VAT)
  500kg Shackled T-Davit Height of Lift: 1402/1714mm c/w Top Mount Socket (Net Weight Per Item: 46.00kg):

  Quantity:

  1+

  (£2,555.65 inc VAT)
  500kg Shackled T-Davit Height of Lift: 1717/2029mm c/w Top Mount Socket (Net Weight Per Item: 48.00kg):

  Quantity:

  1+

  (£2,629.13 inc VAT)
  500kg Shackled T-Davit Height of Lift: 2027/2339mm c/w Top Mount Socket (Net Weight Per Item: 51.00kg):

  Quantity:

  1+

  (£2,559.26 inc VAT)
  500kg Shackled T-Davit Height of Lift: 912/1224mm c/w Top Mount Socket (Net Weight Per Item: 43.00kg):

  Quantity:

  1+

  (£2,393.70 inc VAT)
