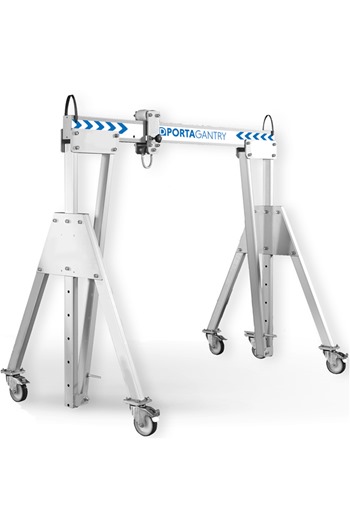

Reid Lifting 500kg 1605-2355mm PortaGantry

Reid Lifting 500kg PortaGantry 1605-2355mm

Our top quality and highly durable PORTAGANTRY is lightweight and extremely strong. This portable lifting system can be manually assembled, using just four bolts and can safely lift to 500kg, making it ideal for multiple applications

This system offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials. Our PORTAGANTRY range is highly customisable to meet your specific needs, with a variety of A-frame height configurations and beam lengths available

Available with beam lengths from 2.5mtr to 9mtr (overall beam length, not working span - see attached data sheet for dimensions)

Minimum height to lifting eye: 1605mm

Maximum height to lifting eye: 2355mm

Height to top of beam: 2675mm

Height adjustment: 150mm increments

Supplied with Masterlink Trolley

Key features:-

• EN795:2012 & ATEX certified
• Can support goods and personnel lifting
• Suitable for up to 3 persons for fall protection applications
• Personnel capacity up to 250kg
• Goods capacity up to 500kg
• Beams and A-Frames can be interchanged
• Ergonomic 360° swivel-locking castors as standard
• Ease of assembly including height and span adjustment
• Height adjustment: 150mm increments
• Anodised for increased corrosion resistance

​*** Set up tools not included ***
