Reid Lifting PortaGantry Rapide

Reid Lifting PortaGantry Rapide

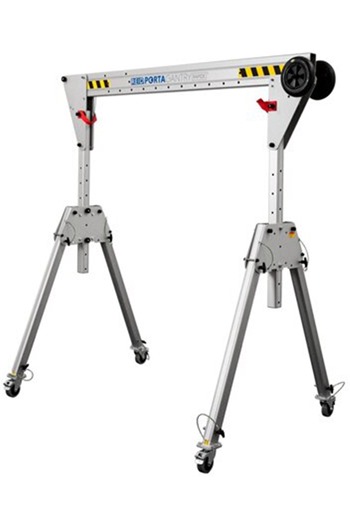

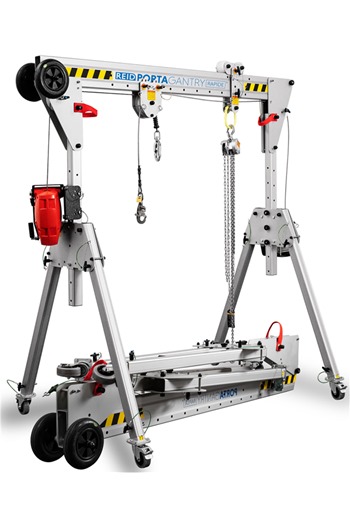

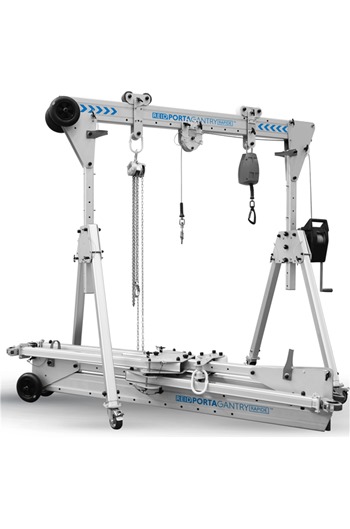

The unique and innovative PortaGantry Rapide is a height adjustable, foldable Aluminium Gantry designed for rapid deployment

Capable of an impressive load lifting capacity of up to 500kg (see attached and below loading chart)

This system can be assembled and disassembled by just one person within a minute without the need for any tools and is the perfect solution for Confined Space Access, Rescue & Entry Lifting scenarios due to it's unique features and ability to lift equipment and personnel

Available in 3 height-adjustable versions [up to 2.9mtr to the lifting eye] and can accommodate a range of beam lengths up to 4mtr

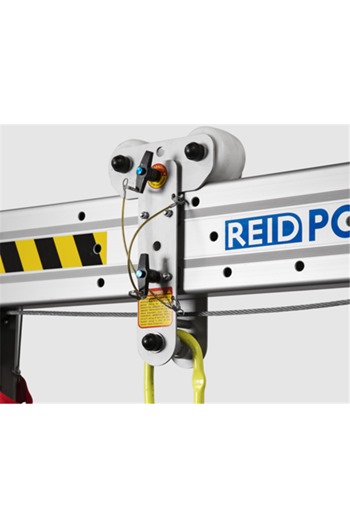

Supplied with Masterlink Trolley

Key features:-

• EN795:2012 & ATEX certified
• Can support goods and personnel lifting
• Suitable for up to 3 persons for fall protection applications
• Personnel capacity up to 250kg
• Goods capacity up to 500kg (see loading chart)
• Integrated wheel design that folds with the frame for ease of transportation
• Easy height adjustment
• Available in 3 height-adjustable versions [up to 2.9mtr to the lifting eye] and can accommodate a range of beam lengths up to 4mtr
• Anodised for increased corrosion resistance

Optional extras:-

• Gated trolley options and sheave carriers for attaching fall arrest devices
• A range of winch brackets available for the trap plate or upright
• Winch ready accessories for lowering and rescue
• Closed Coupled Trolley - can be used when additional headroom or clearance is needed below the beam
