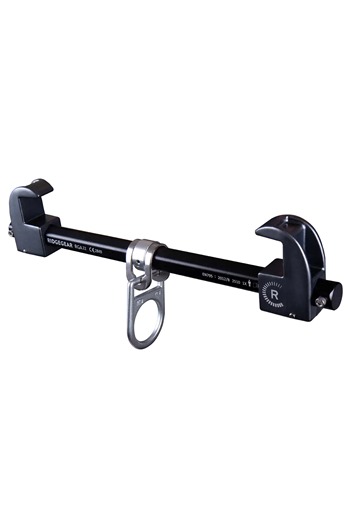

The RGA22 Sliding Beam Anchor, also known as a Beam Anchor Trolley, is a specialised piece of PPE which creates a mobile anchor point
It offers continuous safety and mobility when working on horizontal beams. It reduces the risk of the pendulum effect (swinging) if a fall is to take place, unlike a fixed anchor
No need to connect and reconnect, removing the risk of working unprotected between anchor points, improving safety and productivity
Designed for a single user only
The beam anchor is adjustable, allowing it to fit a wide range of beam flange widths, ranging from 110mm to 358mm. The trolley comes with release buttons making adjustment quick and simple

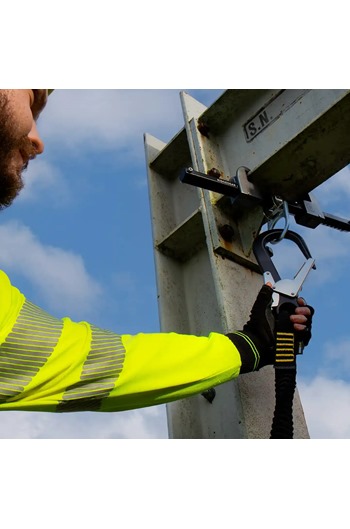

The beam anchor trolley is ideal for tasks which require long distance horizontal movement, such as in warehouses, steel erection on construction sites, bridge work and industrial maintenance. Can also be used for rope access applications
Specifications
- Material: Steel alloy
- Beam width range: 110 - 358mm
- Weight: 1.9kg
- Overall length: 490mm
- Overall height: 200mm
- Overall width: 76mm
- D-ring diameter: 55mm
- Maximum jaw thickness: 30mm
- Conforms to EN795:2012 Type B
